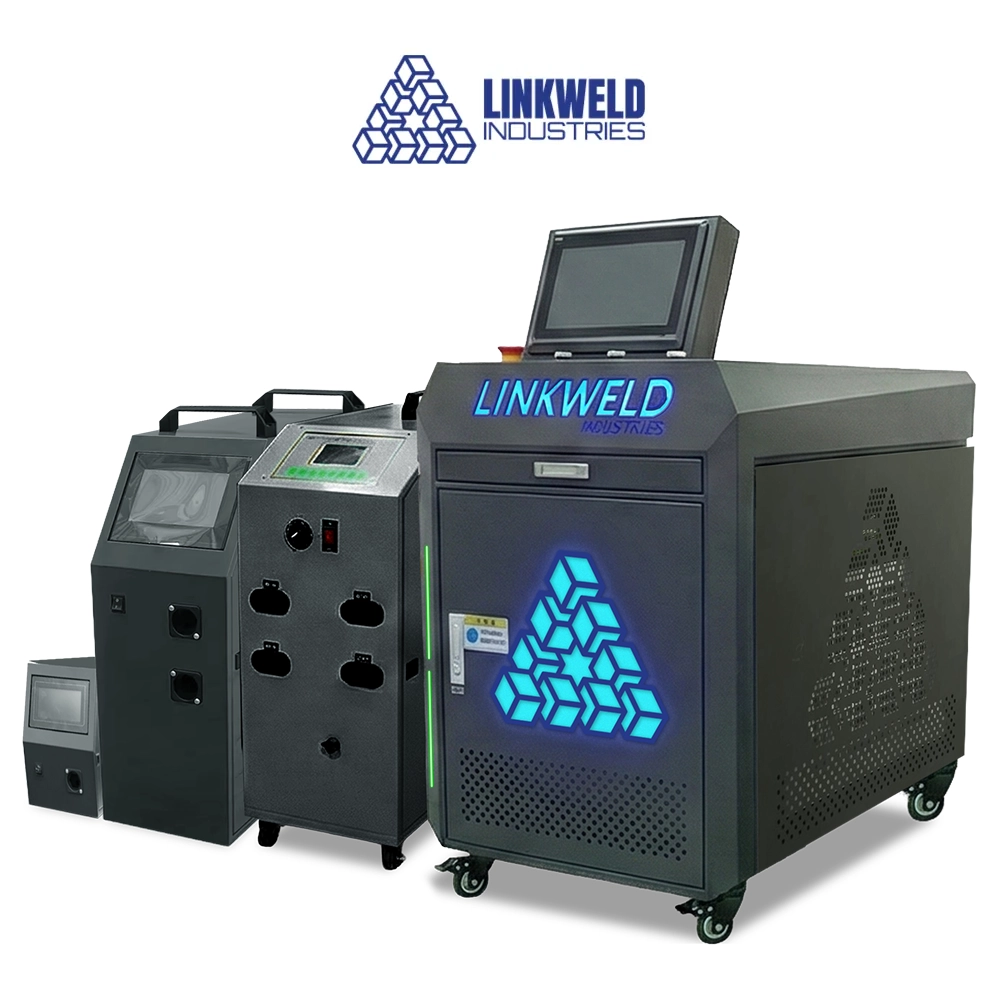

Fiber Laser Welding Machine / Laser Welding Machine – Linkweld Industries Model X’Treme – PRO (4-in-1)
A professional fiber laser welder designed with 4 multifunction modes:
Welding / Cutting / Rust Cleaning / Seam Cleaning
▶︎ Technical Parameters
| Laser Source | Linkweld Laser |
| Welding Gun | DWT22 (Single Wire Feed) |
| DWT23 (Double Wire Feed) | |
| BWT21 (Quadra Wire Feed) | |
| Output Power | 1500 / 2000 / 3000 W |
| Operating Mode | Continuous / Pulse |
| Working Hours | 24 hours operation |
| Welding Materials | Stainless steel, carbon steel, and other metals |
| Welding Thickness | 0.5 - 8 mm (depending on welding effect and materials) |
| Welding Speed | 50 - 800 mm/min |
| Operating Conditions | Ambient temperature 10-35 ํC, relative humidity 30% ≤ RH ≤ 85%, no condensation, no vibration |
| Power Requirements | 220V / 50Hz (1500W, 2000W), 380V / 60Hz (3000W) |
| Machine Dimensions (mm) | 875 × 590 × 870 (excluding wire feeder) |
| Wire Feeder Dimensions (mm) | 305 x 610 x 465 (Single) |
| 375 x 820 x 58 (Double) | |
| 320 x 730 x 720 (Quadra) |
▶︎ Supported Material Thickness
| Material | Max. Thickness (mm) | ||
| 1500W | 2000W | 3000W | |
| Carbon Steel | 5 | 6 | 8 |
| Stainless Steel | 5 | 6 | 8 |
| Aluminum | 3 | 4 | 6 |
| Galvanized Sheet | 2 | 3 | 6 |
▶︎ Standard Set
🔹 Laser Source : Linkweld Laser
🔹 S&A Chiller : S&A , Hanli
🔹 Laser safety goggles
🔹 Nozzle full set (0.8 – 1.6 mm)
🔹 10-meter welding cable
▶︎ Key Features
🔹 Touch screen control panel (20 language supported)
🔹 Touch screen wire-feed control interface
