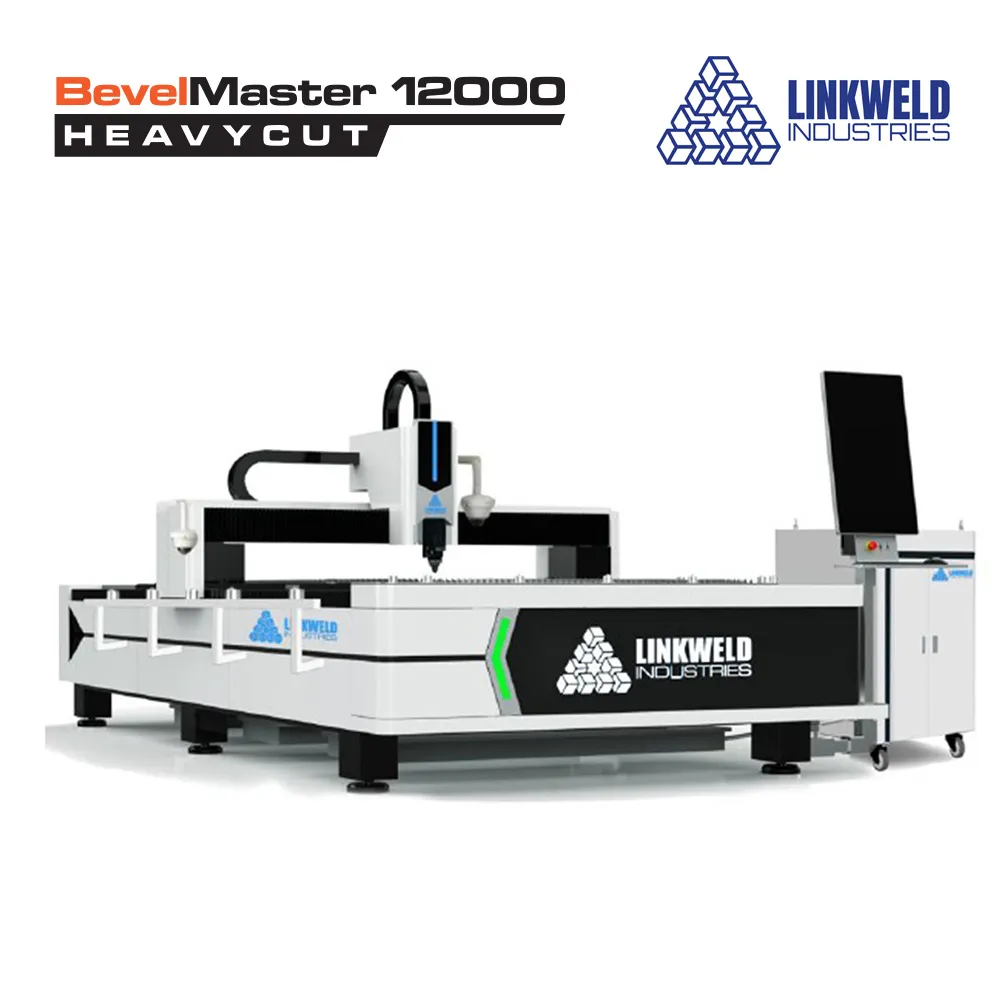

Fiber Laser Cutting Machine / Laser Cutting Machine - Linkweld Industries Model BevelMaster 12000 HEAVYCUT - Beveling Cutting 12000 watt
The Fiber Laser Cutting Machine / Laser Cutting Machine Linkweld Industries - BevelMaster 12000 HEAVYCUT - Beveling Cutting 12000 watt is an industrial-grade laser cutter designed specifically for heavy-duty applications. It supports both straight and bevel cutting in a single machine.
With its powerful 12,000W fiber laser, it can cut thick metal sheets quickly, accurately, and with high-quality surface finishes. It's ideal for large-scale structures, welding, and welding preparation work without the need for additional finishing processes.
▶︎ Key Features of Fiber Laser Cutting Machine / Laser Cutting Machine Linkweld Industries Model BevelMaster 12000 HEAVYCUT - Beveling Cutting 12000 watt
🔹 12,000W laser power supports cutting thick metal and heavy-duty materials.

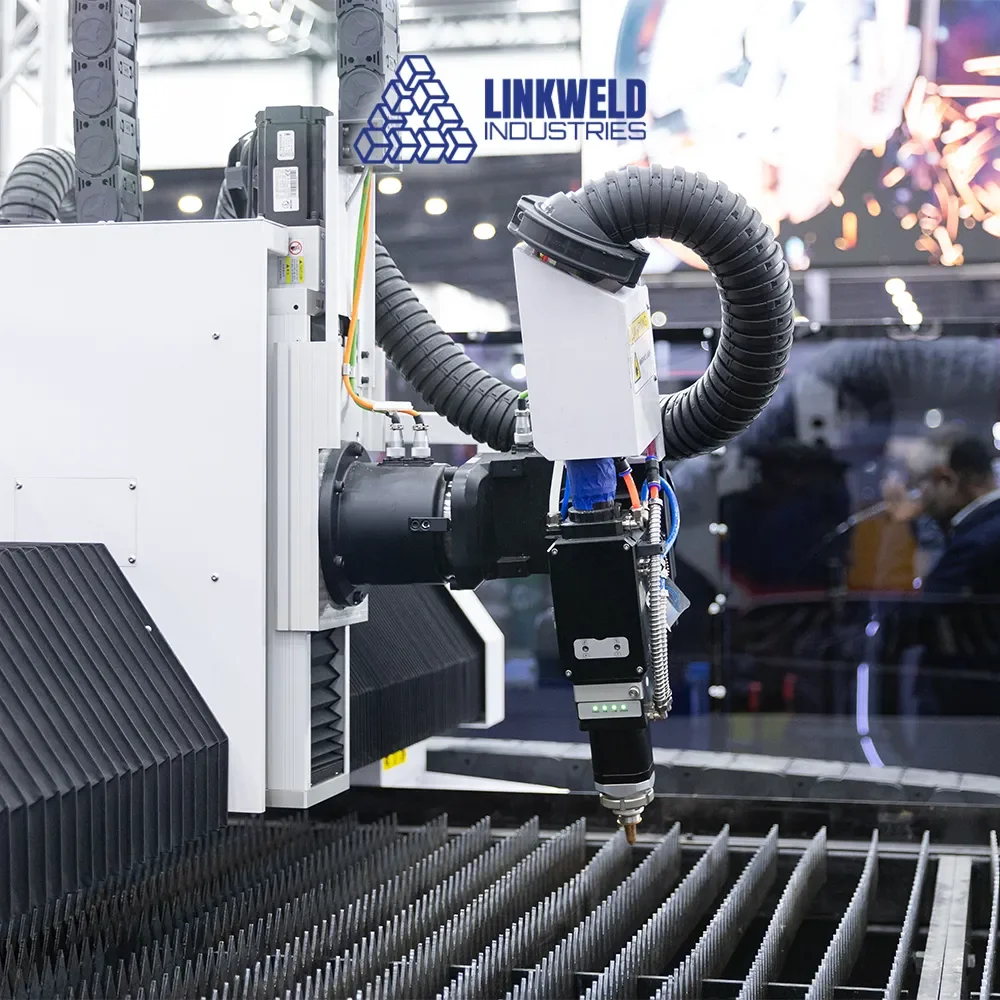

🔹 Supports bevel cutting (tilting head) for adjustable cutting angles, increasing convenience during welding.
🔹 Extra-large cutting area (up to 4550 × 2530 mm) supports large sheet metal.
🔹 Heavy-duty welded steel structure for strength, reduced vibration, and increased precision.
🔹 BOCI cutting head + Raycus laser source for stability and long lifespan.
🔹 FSCUT 9100 control system supports advanced industrial CNC applications.
🔹 Supports DXF / DWG / AI files for easy integration with CAD.
🔹 2-zone fume extraction system + 3 cameras for enhanced safety and work control.
▶︎ Technical Parameters of Fiber Laser Cutting Machine / Laser Cutting Machine - Linkweld Industries Model BevelMaster 12000 HEAVYCUT - Beveling Cutting 12000 watt
| Table Type: | Single table |
| Effective bevel cutting area: | 2030 × 4050 mm |
| Effective flat cutting area: | 4550 × 2530 mm |
| Z-axis stroke: | 150 mm |
| XY/Z Drive System: | Gear & rack with ball screw |
| Power Requirement: | 380V 50Hz 3-phase |
| Table Loading Capacity: | 1200 kg |
| Machine Body: | Heavy-duty welded steel |
| Gantry Structure: | Aviation-grade aluminum |
| Machine Weight: | 5.8 tons |
| Cutting head height clearance: | 80 cm |
▶︎ Main Components of Fiber Laser Cutting Machine / Laser Cutting Machine - Linkweld Industries Model BevelMaster 12000 HEAVYCUT - Beveling Cutting 12000 watt
| Laser Source: | Raycus (3-year warranty) |
| Laser Head: | BOCI BLT |
| Control System: | FSCUT 9100 |
| Pinion Rack / Rail / Guide: | Premium brands (PEK, BOCHU SG, Technach, etc.) |
| Electrical Components: | Schneider / Honeywell USA |
| Laser Source Cabinet: | Temperature-controlled |
▶︎ Additional Functions of Fiber Laser Cutting Machine / Laser Cutting Machine - Linkweld Industries Model BevelMaster 12000 HEAVYCUT - Beveling Cutting 12000 watt
Low-noise exhaust blower 5.5KW
Water chiller by Tongfei
Software-controlled lubrication system
Vertical 21.5″ display
Supported formats: DXF, DWG, AI, PLT, BMP, DST, LAS
Plate roller support: 4-side + double in front
CS thickness tray (5 mm with reinforcement)
Workpiece support for curved & thick plates
Dual-zone smoke extraction
New angle-adjustable design up to 90°
3-camera monitoring system
Warranty: 3 years for machine & laser source
