AWS A5.14 ERNiCu-7

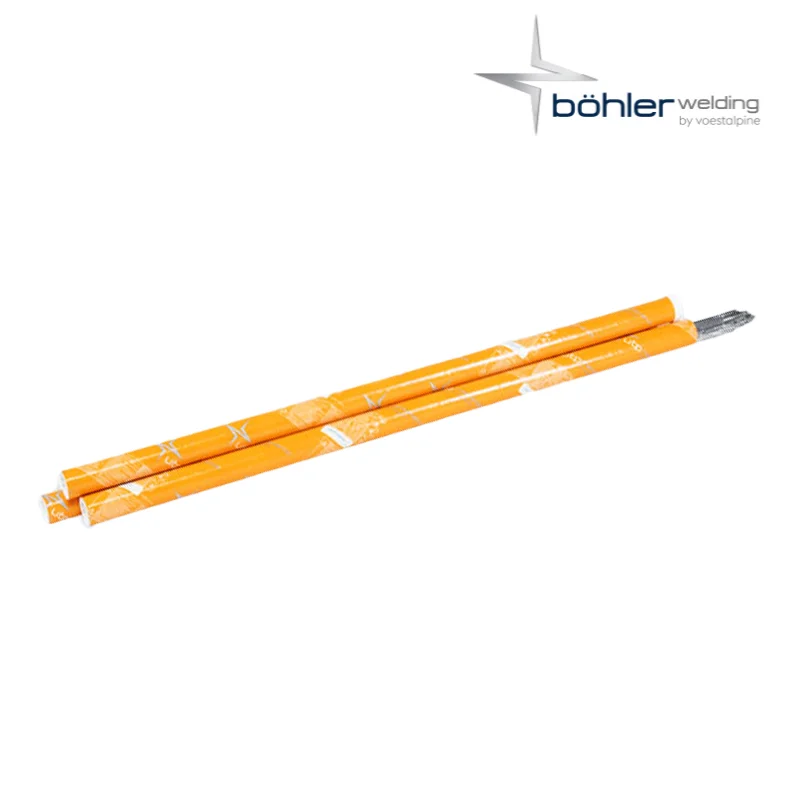

Böhler UTP A 80 M
TIG rod, Ni-Cu alloys
▶︎ Characteristics and typical fields of application
UTP A 80 M is suitable for joining and surfacing of nickel-copper alloys and of nickelopper-clad steels. Particularly suited for the following materials: 2.4360 NiCu30Fe,2.4375 NiCu30Al. Also used for joining different materials, such as steel to copper and copper alloys steel to nickel-copper alloys. These materials are employed in high-grade apparatus construction, primarily for the chemical and petrochemical industries. A special application field is the fabrication of seawater evaporation plants and marine equipment. The weld metal has an excellent resistance to a large amount of corrosive medias, from pure water to non-oxidizing mineral acids, alkali and salt solutions. It suitable for welding material C276.
▶︎ Classification
AWS A5.14 ER NiCu-7
EN ISO 18274 S Ni 4060 (NiCu30Mn3Ti)
▶︎ Sizes and Weight per pack.
| Welding diameter (mm) | 2.4 |
| Weight per tin (kg) | 5 |
| Weight per box (kg) | 20 |
