LINKWELD LASER SPECTRA Z – Laser Source
Product Overview
The Linkweld Laser is a high-performance 1.0 μm single-mode continuous fiber laser source engineered for advanced industrial applications.
It delivers high beam quality, excellent power stability, and long-term reliability, making it ideal for modern smart manufacturing and automated laser systems.
Designed to process high-reflective materials with confidence, it supports both Continuous Wave (CW) and modulated operation for maximum application flexibility.
Key Features
- High wall-plug efficiency with reduced power consumption
- Stable performance on high-reflective materials
- Excellent beam quality & power stability
- Long lifetime with industrial-grade reliability
- Remote monitoring & smart diagnostics
- Customizable fiber, connector, and system configuration
- Supported by Linkweld engineering & after-sales service
Applications
- Laser cutting
- Laser welding
Technical Highlights
- Wavelength: ~1080 nm (1.0 μm)
- Output Power: 1000W, 2000W, 3000W
- Power Stability: ±1% (short-term), ±2% (long-term)
- Operation Mode: CW & Modulation
- Output Connector: QBH (customizable)
- Cooling: Water cooling
- Communication: RS232 / AD / APP (optional)
| Performance | Unit | Min | Typ. | Max | Remarks | ||
| Optical Characteristics | Central Wavelength | (nm) | 1070 | 1080 | 1090 | ||
| Spectral Band width | (nm) | 3 | 6 | -3dB | |||
| Output optical power | 1500W | (W) | 1500 | ||||
| 2000W | 2000 | ||||||
| 3000W | 3000 | ||||||
| Short time power stability | (%) | ±1 | |||||
| Long time power stability | (%) | ±2 | |||||
| Laser opening time | (µs) | 50 - 100 | |||||
| Laser shutdown time | (µs) | 100 - 200 | |||||
| Power regulation range | (%) | 10 | 100 | ||||
| Beam Quality | (M2) | 1.2 | QBH-20 | ||||
| 2.5 | 3.5 | QBH-50 | |||||
| 6 | 12 | QBH-100 | |||||
| Fiber Numerical aperture (NA) half angle | (rad) | 0.065 | QBH-20, 25 | ||||
| 0.22 | QBH-50, 100 | ||||||
| Modulation frequency | (KHz) | 5 | 20 | 100% Output | |||
| Red ligth Power | (mW) | 40 | 60 | ||||
| Output Characteristics | Output Connector | QBH | Customizable | ||||
| Output Fiber core diameter | (µm) | 50 | Customizable | ||||
| Output fiber length | (m) | 10 | 15 | Customizable | |||
| Output cable bending radius | (mm) | 200 | |||||
| Work model | Continuous/ Modulation | ||||||
| State of polarization | Random | ||||||
| Electrical cooling characteristics | Electrical cooling characteristics | RS232 | |||||
| Remote Communication | APP | Customizable | |||||
| Power Supply | (V) | 220 | |||||
| Power Consumption | 1500W | 4.4 | 220V , single phase | ||||
| 2000W | 5.5 | ||||||
| 3000W | 8.8 | 380V , custumizable | |||||
| Cooling Mode | Water Cooling | External | |||||
| Cooling Water temperature | (°C) | 21 | |||||
| Cooling water flow | 1500W | (L/min) | 20 | ||||
| 2000W | 25 | ||||||
| 3000W | 40 | ||||||
| General characteristics | (°C) | 10 | 40 | ||||
| General characteristics | Working environment humidity | (%) | 10 | 85 | |||
| Storage temperature | (°C) | -10 | 60 | ||||
| Structure | Rack | ||||||

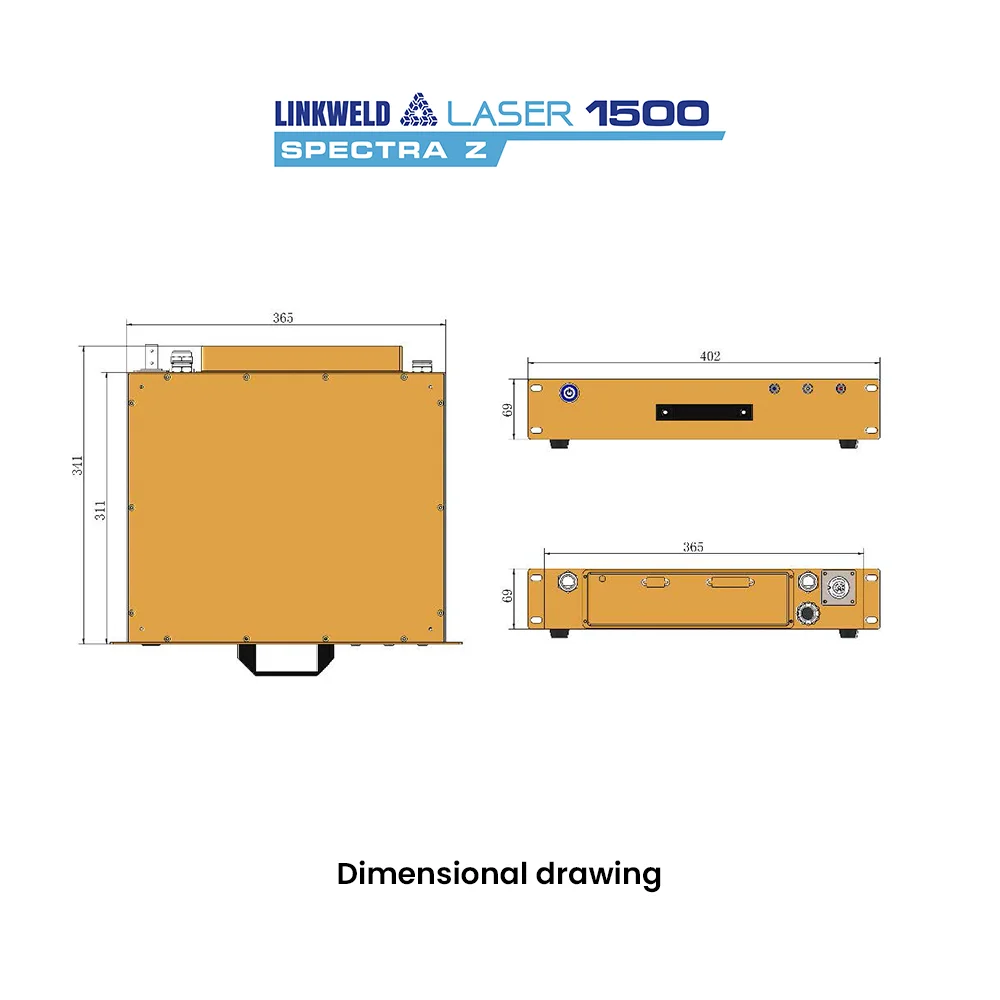

| Weight/ Size | 1500W | (kg) | 18.5 | W x L x H (mm) | 402(365) x 412 (382) x 82 | ||
| 2000W | 23.5 | 407(367) x 442.5 (412.5) x 80 | |||||

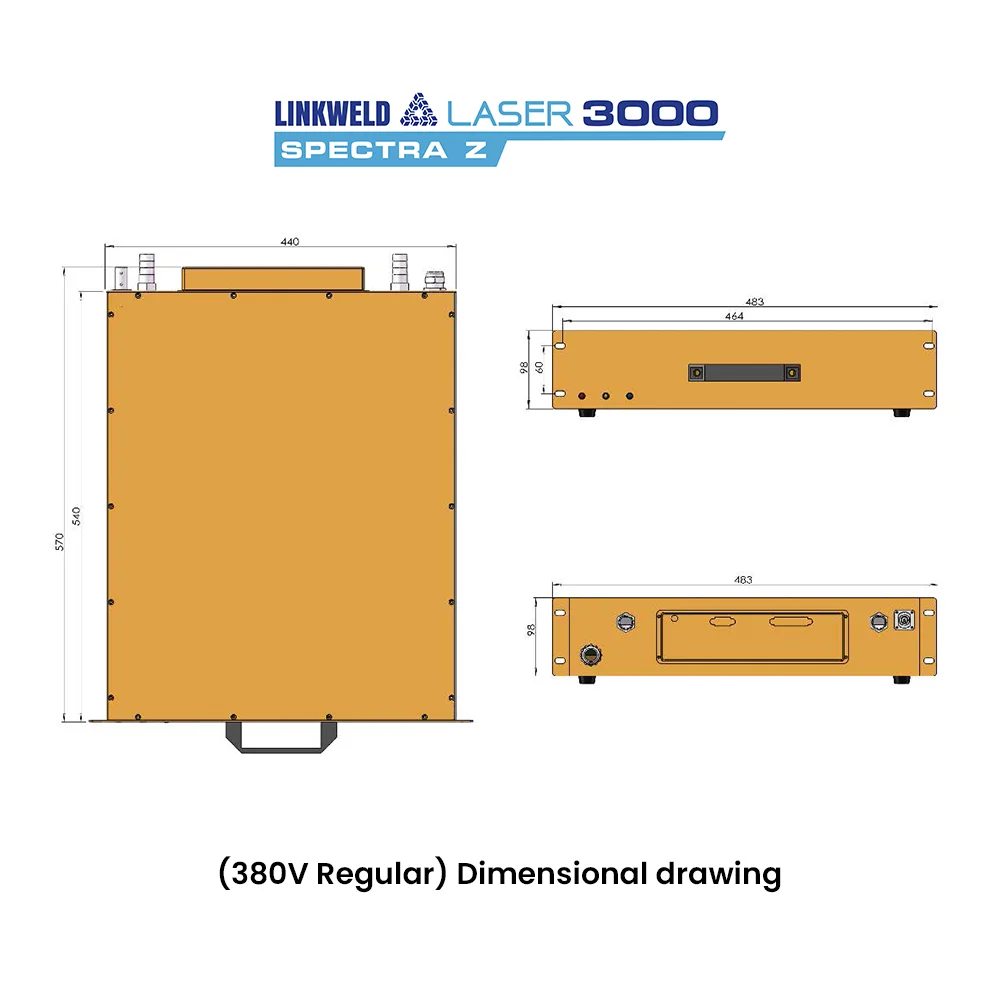

| 3000W | 35 | 483(440) x 570 (540) x 98 | |||||
| Performance | Unit | Min | Typ. | Max | Remarks | |
| Central Wavelength | (nm) | 1070 | 1080 | 1090 | ||
| Spectral Bandwidth | (nm) | 5 | 8 | 3dB | ||

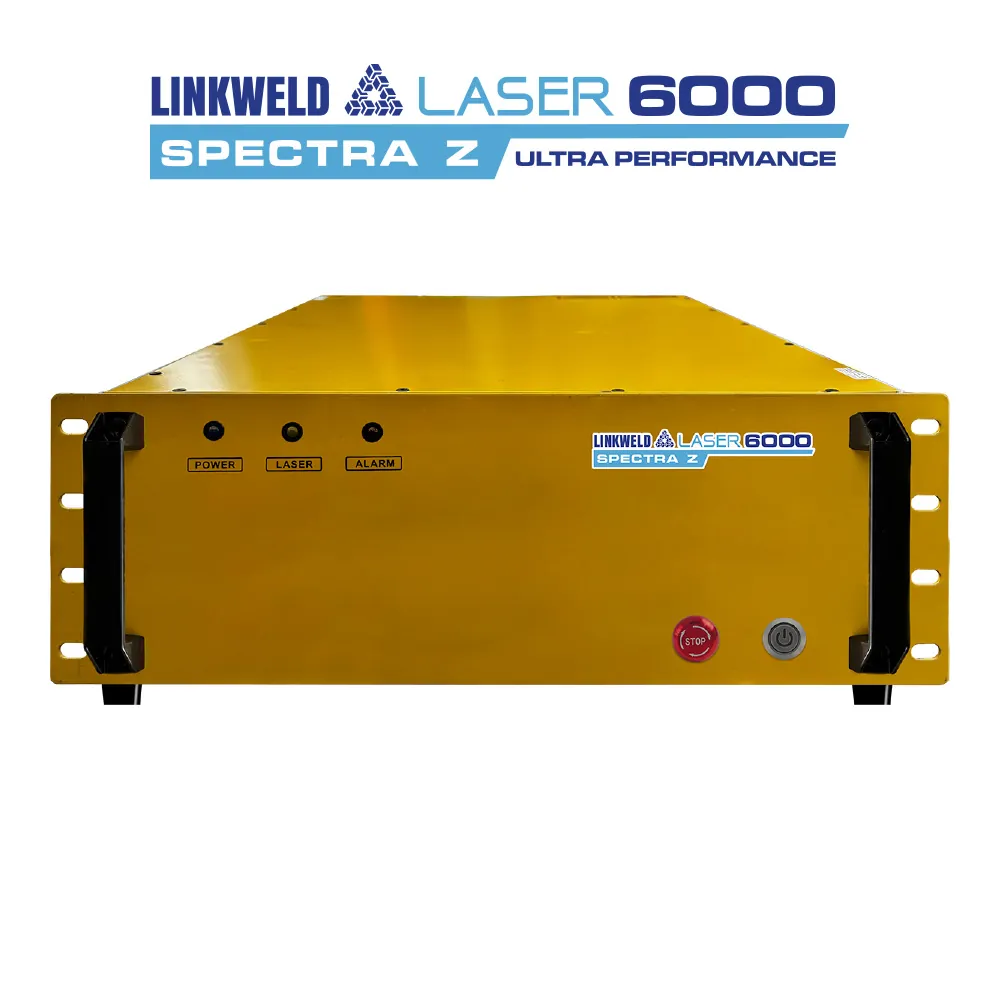

| Output Optical Power | 6000W | (W) | 6000 | |||

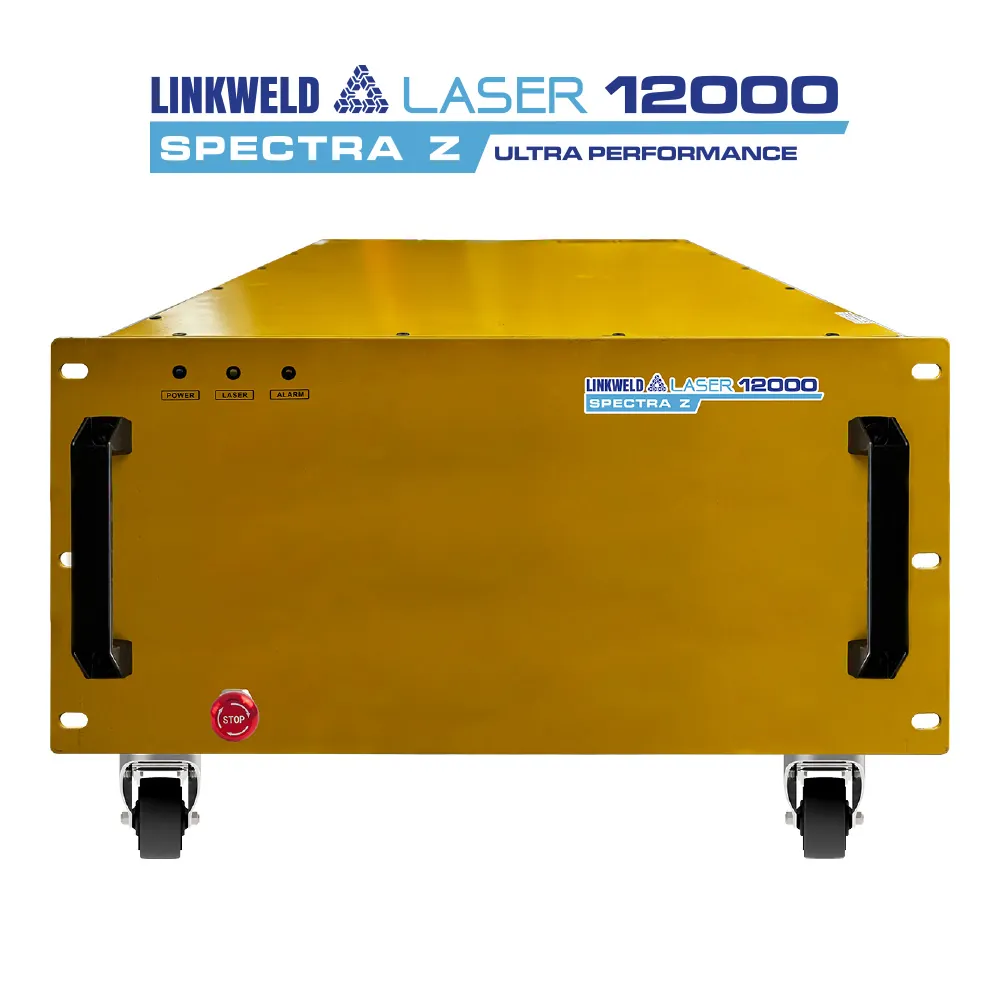

| 12000W | 12000 | |||||
| Power ADJ. Range | (%) | 10 | 100 | |||
| Output Power Stability | -1 | 1 | 100% continuous >1h | |||
| ±2 | ±3 | 100% continuous >24h | ||||
| Modulation Frequency. | (KHz) | 5 | 100%output | |||
| Glow Power | (mW) | 5 | 65 | |||
| Output Connector | 6000W | 6000W | ||||
| 12000W | 12000W | |||||
| Beam Quality (BPP) | 3.5 | 4.5 | Output fiber core-diameter100um | |||
| (mm*mrad) | 5 | 6.5 | Output fiber core-diameter150um | |||
| 6.5 | 9 | Output fiber core-diameter200um | ||||
| Output Fiber Length | (m) | 15 | Customize | |||
| Output Fiber Core-Diameter | (μ m) | 100 (150/200) | Customize | |||
| Output Fiber Bending Radius | (mm) | 200 | ||||
| Working Mode | continuous modulation | |||||
| Polarization State | Random | Random | ||||
| Telecommunication Port | RS232 / AD / Super terminal | |||||
| Remote Telecommunication | APP | Customize | ||||
| Working Voltage | (V) | 360 | 380 | 400 | VAC | |
| Input Power | (KW) | 20 | CYL-6000/M 100% output | |||
| Cooling Method | (L/min) | Water- cooling | Circumscribed | |||
| Working Environment Temp. | (°C) | 10 | 2 | 40 | ||
| Working Environment Humidity | (%) | 10 | 80 | |||
| Storage Temp. | (°C) | -10 | 60 | |||
| Cooling Medium | distilled water(Above 0°C)525 / Ethylene glycol antifreeze(Below 0°C)1 | |||||

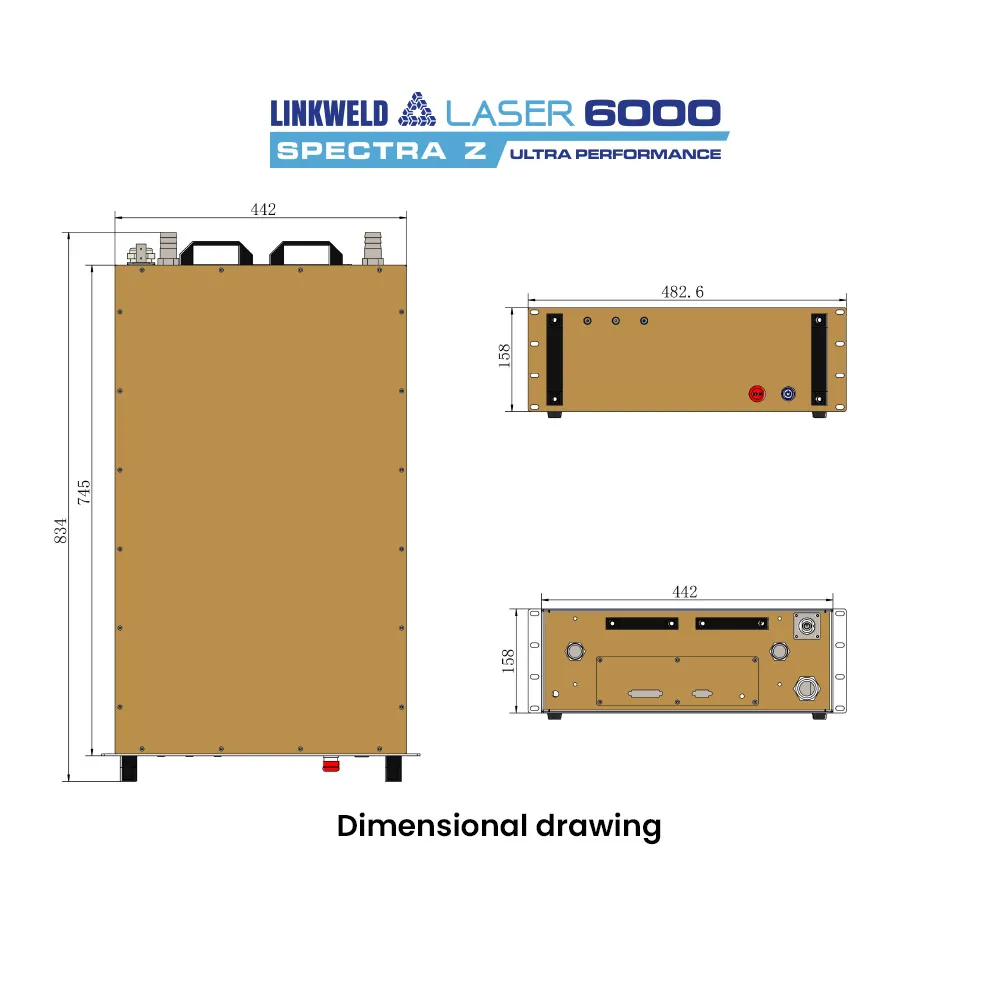

| Weight / Size | 6000W | (kg) | 85 kg | W X L X H (mm) | 834(745) x 482.6(442) x 158 | |

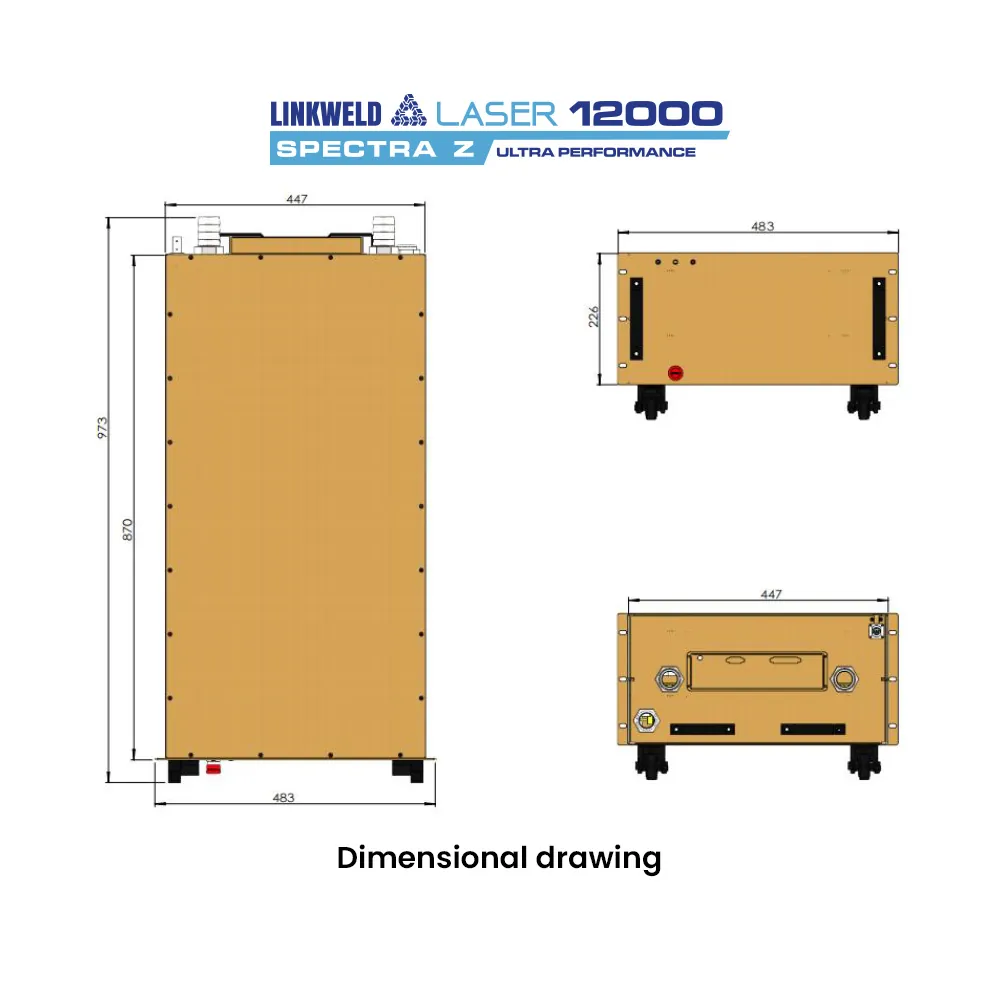

| 12000W | <150 kg | 973(870) x 483(447) x 226 | ||||
