(MIG Wires)
Böhler UTP A 80 M
TIG rod, Ni-Cu alloys
▶︎ Characteristics and typical fields of application
UTP A 80 M is suitable for joining and surfacing of nickel-copper alloys and of nickelopper-clad steels. Particularly suited for the following materials: 2.4360 NiCu30Fe,2.4375 NiCu30Al. Also used for joining different materials, such as steel to copper and copper alloys steel to nickel-copper alloys. These materials are employed in high-grade apparatus construction, primarily for the chemical and petrochemical industries. A special application field is the fabrication of seawater evaporation plants and marine equipment. The weld metal has an excellent resistance to a large amount of corrosive medias, from pure water to non-oxidizing mineral acids, alkali and salt solutions. It suitable for welding material C276.
▶︎ Classification
AWS A5.14 ER NiCu-7
EN ISO 18274 S Ni 4060 (NiCu30Mn3Ti)
▶︎ Sizes and Weight per pack.
| Welding diameter (mm) | 2.4 |
| Weight per tin (kg) | 5 |
| Weight per box (kg) | 20 |

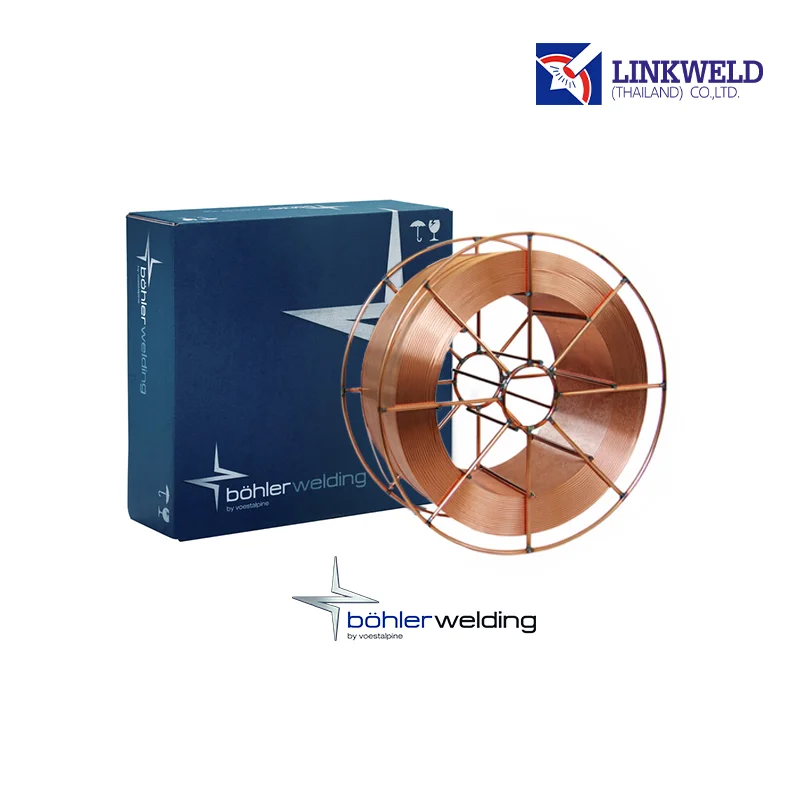

Böhler SG2
CO2 welding wire
▶︎ คุณสมบัติ
BOHLER SG2 copper coated A18 G3Si1 solid MIG welding wire for gas metal arc welding (GMAW) is extensively used for boiler and vessel fabrication.
It is also ideal for structural and engineering applications on unalloyed and low alloyed carbon manganese steels.
▶︎ Typical Analysis (%)
| C | Si | Mn |
| 0.07 | 0.85 | 1.5 |
▶︎ Shielding Gases
M21: Argon+ 15 -25% CO2
C1: 100% CO2
▶︎ Polarity
DC (+)
▶︎ มาตรฐานของลวดเชื่อม
EN ISO 14341-A G 42 3 M21 3Si1 / G 42 3C1 3Si1
AWS A5.18 ER70S-6
