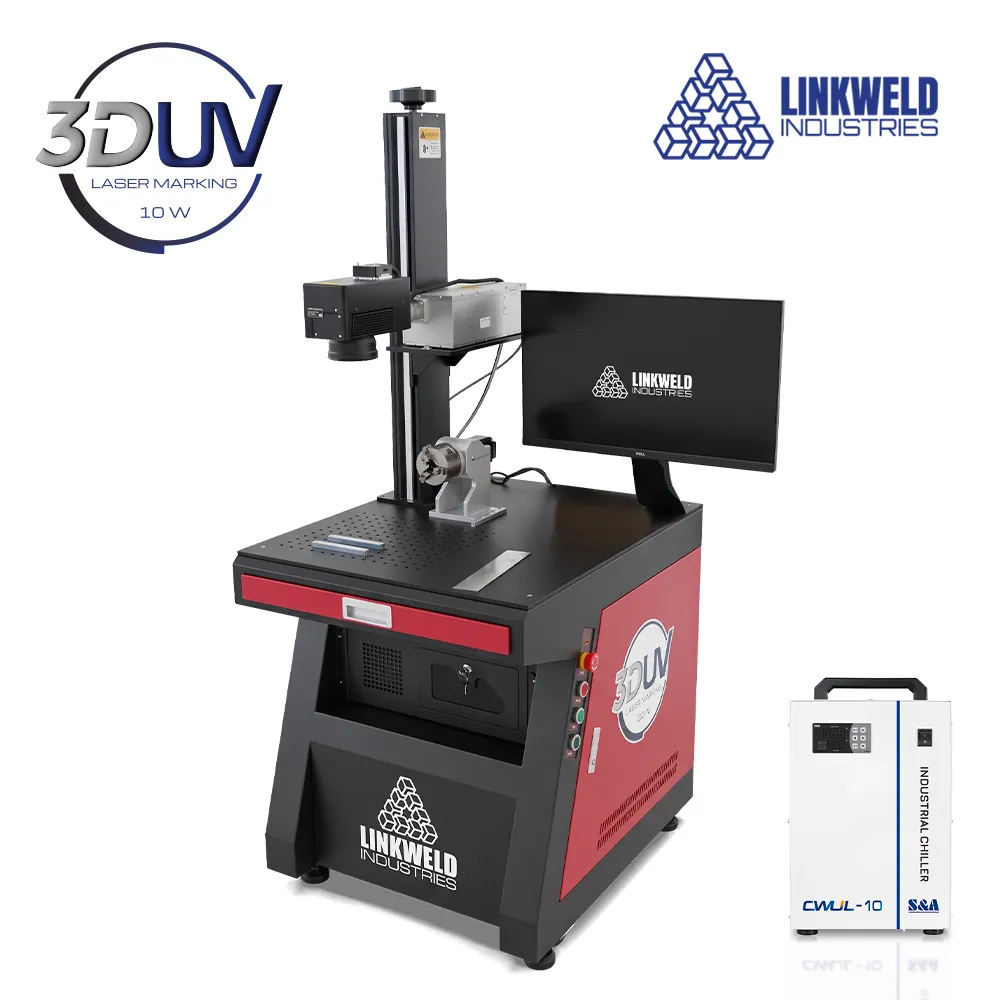

3D Laser Marking Machine – UV 10W
3D UV Laser Marking Machine – 10W
- Delivers high-precision marking on sensitive materials such as plastic, resin, and rubber without deformation
- Creates clear and detailed patterns even on curved or uneven surfaces
- Ensures accuracy and consistency for fine-detail applications
- Suitable for various industries: electronics, precision components, and high-detail product marking
Technical Parameters
- Laser Power: 10W

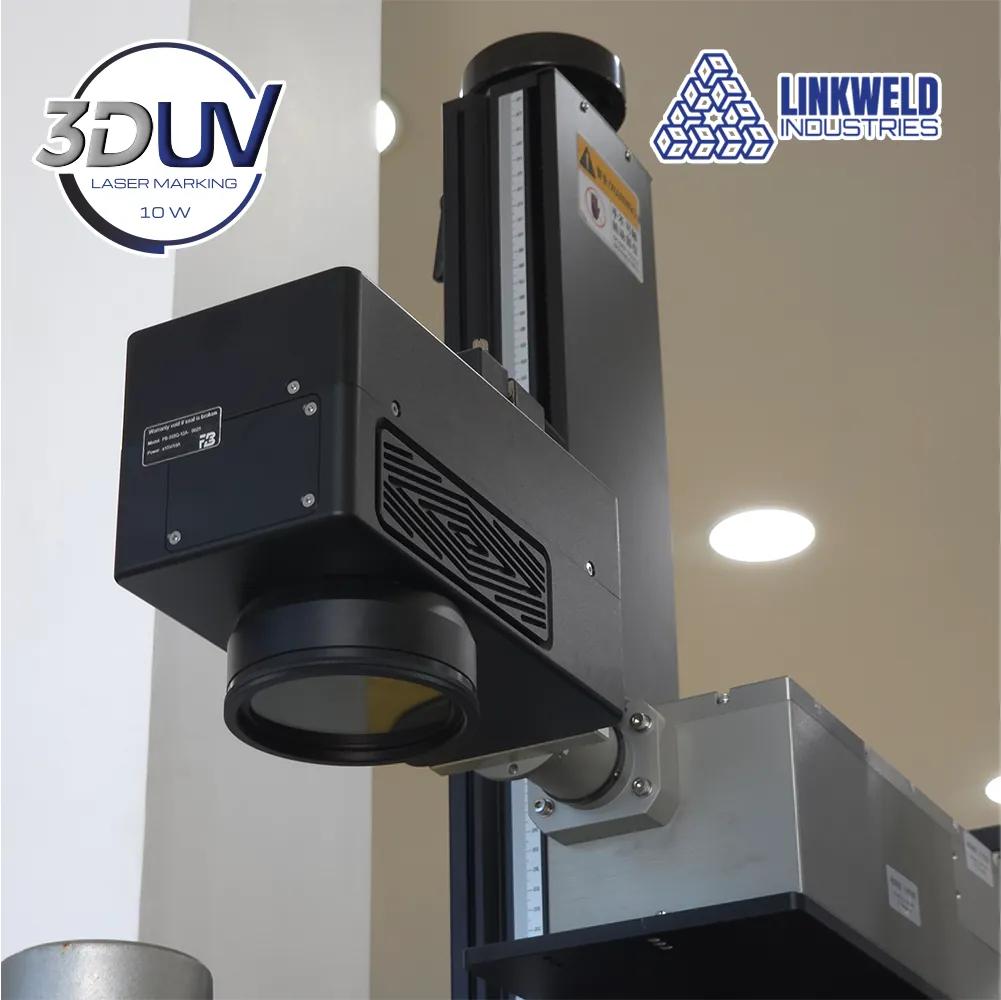

- Laser Source: JPT UV
- Marking Area: 140 × 140 mm
- Max Marking Speed: 2500 mm/s

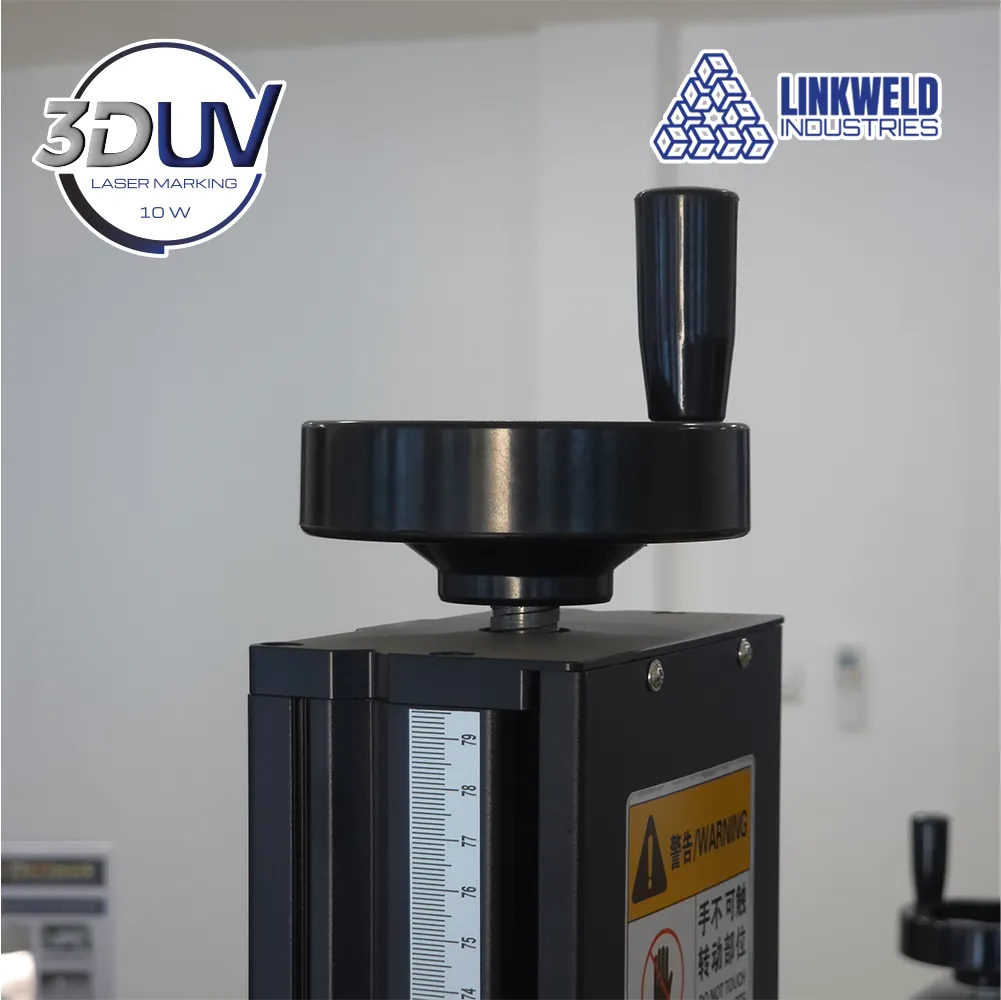

- Z-Axis Height: 600 mm

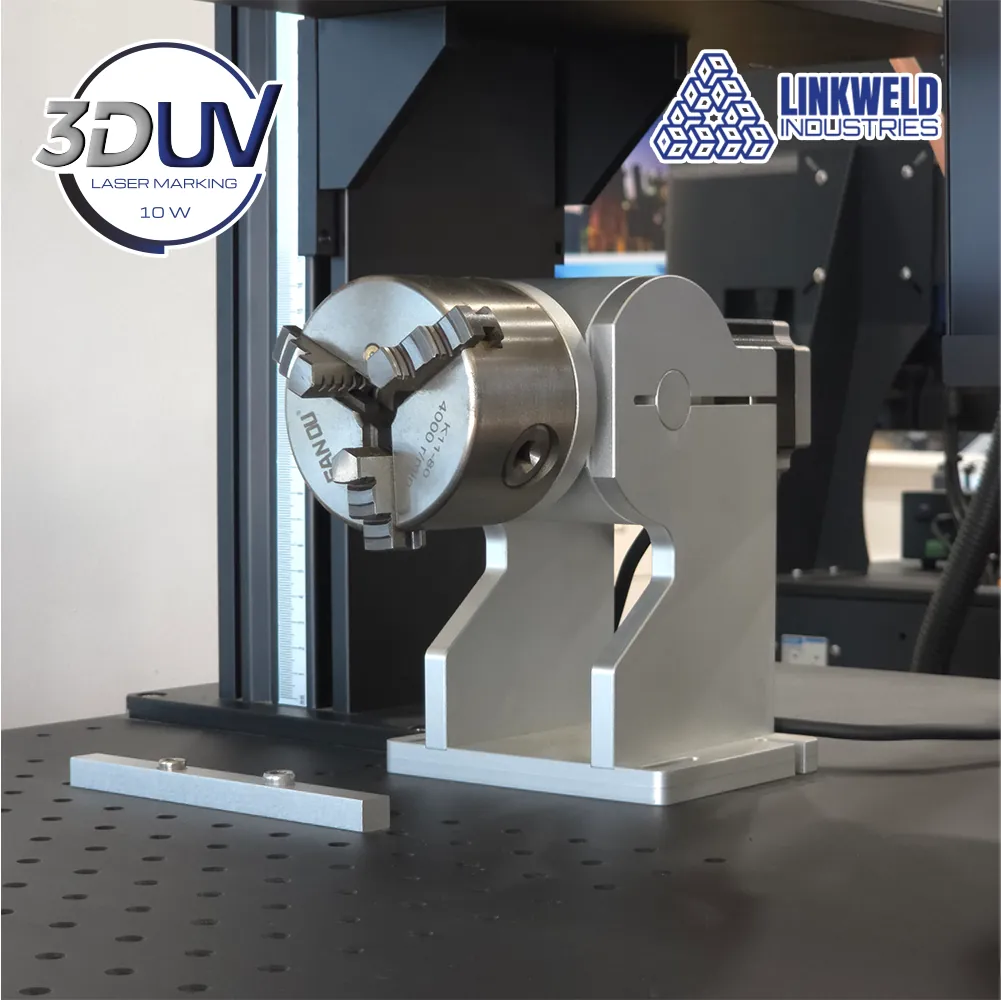

- Rotary Specification: 25–80 mm
- Cooling System: Water Chiller
- Control Software: 3D MARKING MATE (MM3D)

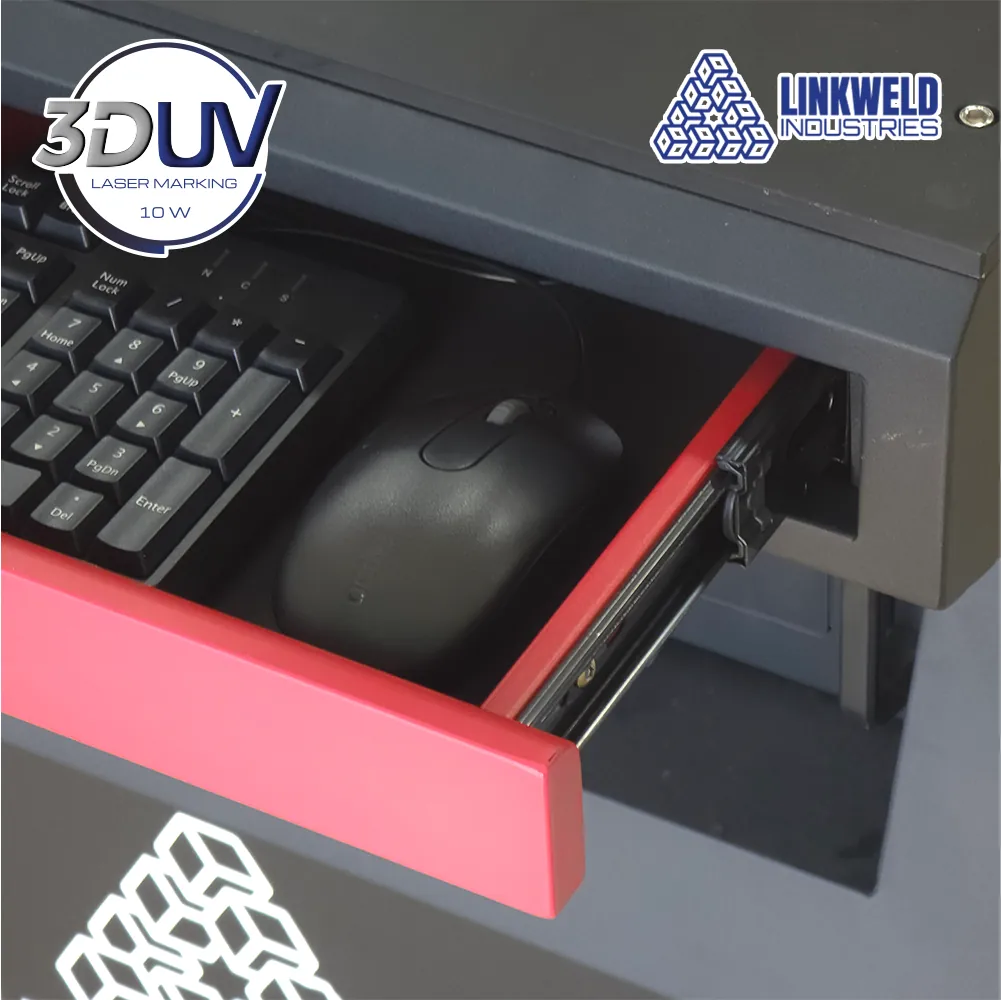

- Computer: Intel Core i5, SSD 256 GB, RAM 16 GB, discrete graphics card
- Monitor: 24 inches
- File Formats: stl, step, iges, txt, dwg, dxf, plt, cnc, obj, gbr, dst, xml, ai, nc, svg, lpf, psd, png, jpg, tiff
- Working Temperature: 5–35°C
- Power Input: 220V, 50Hz
- Dimension: 785 × 650 × 1800 mm
- Weight: 150 kg
