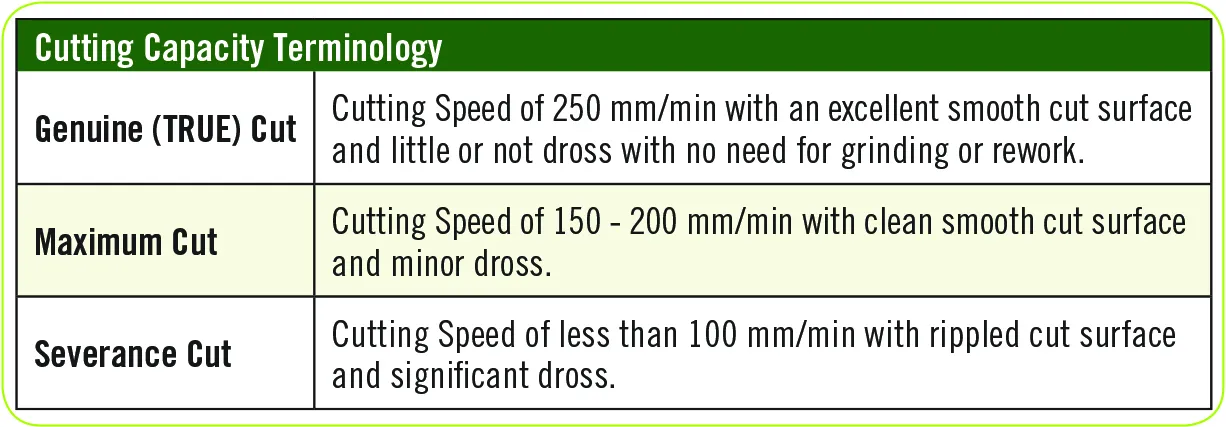

Cutting Thickness:
(Genuine: 40 mm. / Maximum Cut: 50 mm.)
VICTOR Thermal Dynamics Cutmaster 40 plasma is the largest air cooled system manual system in the range. The heavy duty inverter system with a duty cycle of 80% in a 40°C ambient, is specifically designed for high level applications requiring superior endurance and cutting performance. Operating from a 415V three phase supply, the unit incorporates features such as auto-pilot re-start, True Guard™ roll bar and the heavy duty SL100™ 1Torch® for superior performance. The unit can also be used for heavy duty gouging, piercing and beveling applications when fitted with the correct torch consumables.
These features combined with a three year limited warranty make this the ideal unit for and heavy duty fabrication, construction and mining applications.Features:
- Front Panel LED’s indicate status conditions for maximum efficiency
- Trigger latch feature prevents hand fatigue during long cuts. Auto pilot restart instantly re-ignited the pilot arc while cutting expanded metals
- True Guard roll bar provides easy transportation and protection for excellent durability
- Tip Saver current fold back circuit design prevents tip failure when the tip touches the work piece at high output current levels resulting in prolonged consumable parts life
- Storage compartment for convenient access to spare parts and consumables
- Versatile 1Torch with ATC disconnect makes it easy to add lead extensions offering a combined extension lead length of up to 30.5m

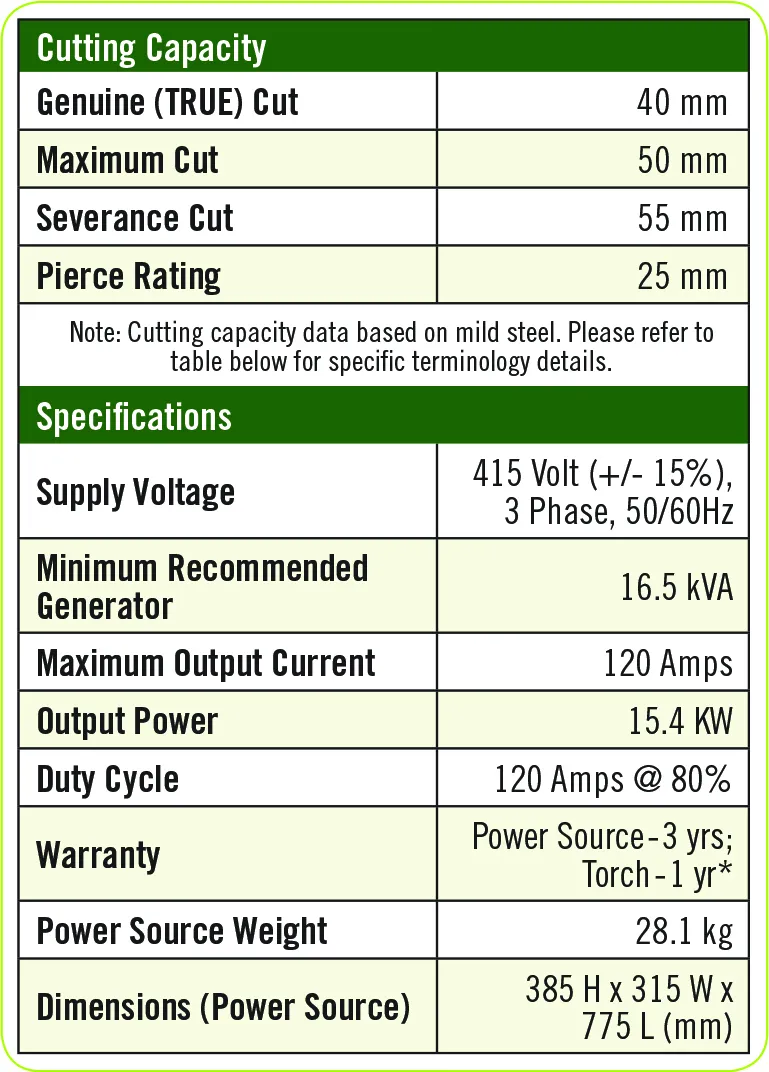

Specifications:
- Supply Voltage: 415 Volt, 3 phase, 50/60Hz 400 V, 27 A, 50/60 Hz
- Maximum Output Range: 120 amps
- Duty Cycle: 80% @ 120A %
- Weight: 28.1 kg
- Dimensions (mm): 381H x 305W x 762L mm
