Cutting Thickness:

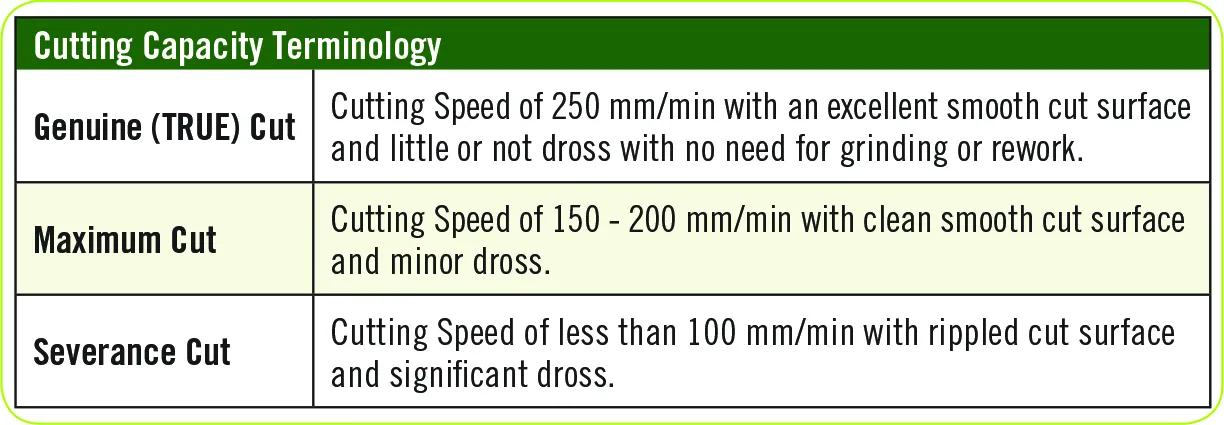

(Genuine: 20 mm. / Maximum Cut: 30 mm.)
VICTOR Thermal Dynamics Cutmaster 25 manual plasma system is designed to provide excellent cutting and beveling performance on materials up to 30 mm thick. This inverter based design operates from a 415V three phase supply and incorporates features such as auto-pilot re-start, True Guard™ roll bar and the industry renowned SL60™ 1Torch® for superior durability and consumable life. The unit can also be used for medium duty gouging applications when fitted with the correct torch consumables.
These features combined with a three year limited warranty make this the ideal unit for and fabrication, construction and maintenance applications.Features:
- Front Panel LED’s indicate status conditions for maximum efficiency
- Trigger latch feature prevents hand fatigue during long cuts. Auto pilot restart instantly re-ignites the pilot arc while cutting expanded metals
- True Guard roll bar provides easy transportation and protection for excellent durability
- Tip Saver current fold back circuit design prevents tip failiure when the tip touches the work piece at high output current levels resulting in prolonged consumable parts life
- Storage compartment for convenient access to spare parts and consumables
- Versatile 1Torch with ATC disconnect makes it easy to ass lead extensions offering a combined extension and lead length of up to 30.5m

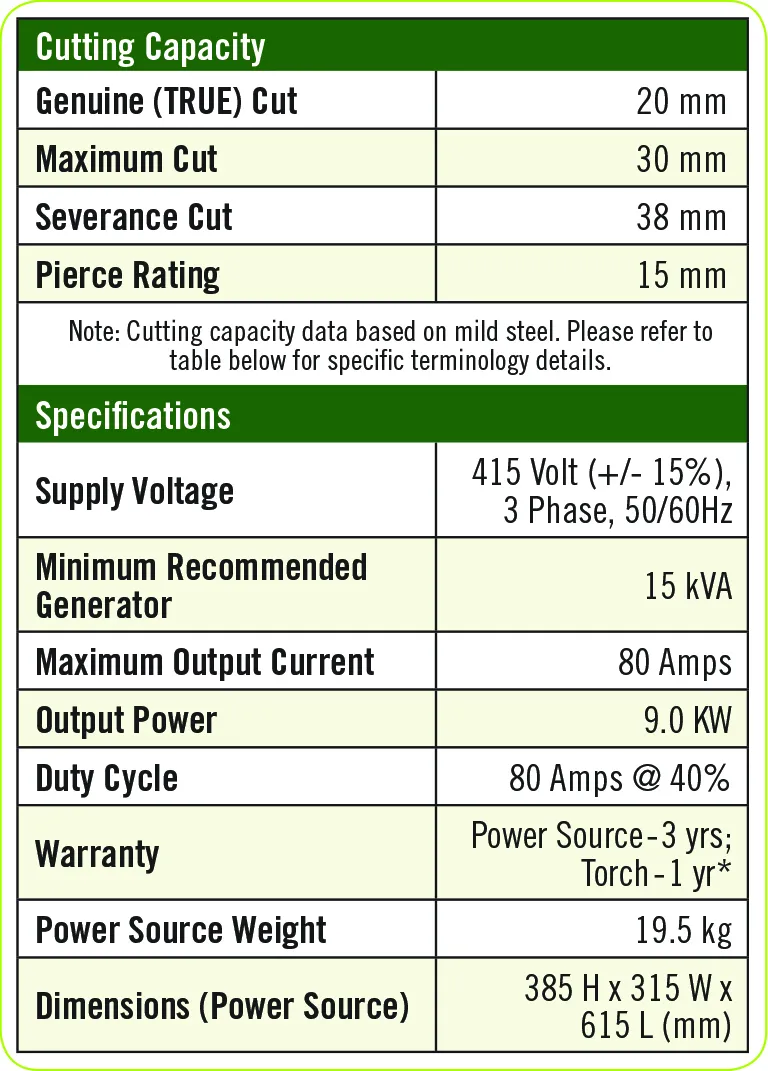

Specifications:
- Supply Voltage: 415 Volt, 3 phase, 50/60Hz
- Maximum Output Range: 80 amps
- Duty Cycle: 40% 80 amps
- Weight: 19.5kg
- Dimensions (mm): 385H x 315W x 615L mm
