AWS A5.9 : ER309L
EN 14343 B : SS309L
JIS Z 3321 : Y309L

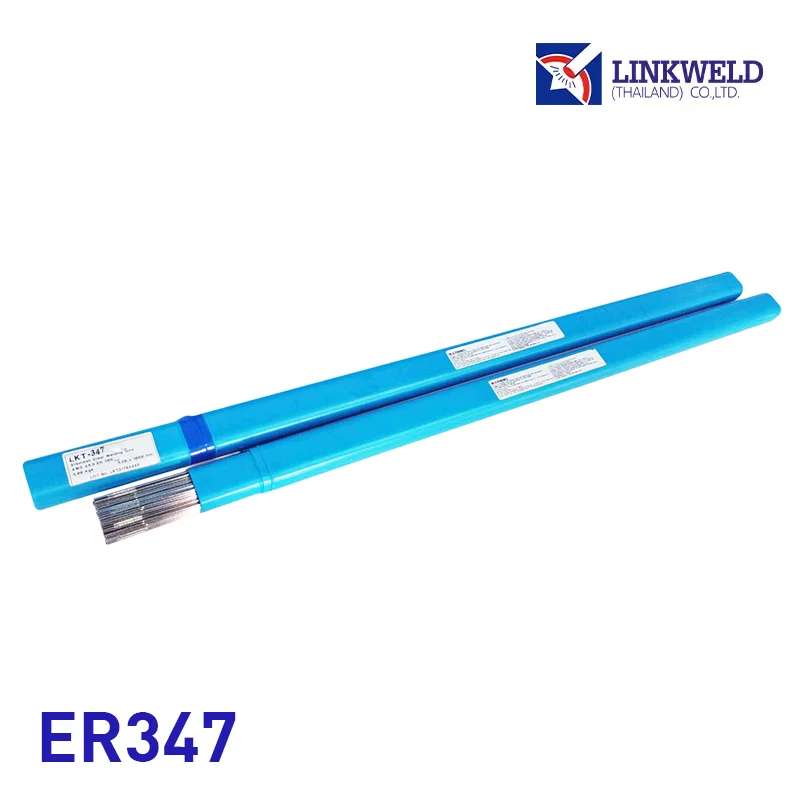

▶︎ Characteristics: stainless steel TIG rod
LKT/LKM-347 is a niobium-bearing rutile electrode for Ti and Nb stabilized 18Cr-8Ni steels. Good inter-granular corrosion resistance and heat resistance can be obtained due to its Nb content. It is use for AISI 347, 321, 304L steels.
▶︎ Applications:
It is suitable for welding of stainless steel piping, boiler and gas turbine.
▶︎ Notes on Usage:
1. For TIG process, use DC(-) current , Argon Shield and Tungsten Electrode.
2. For MIG process, use Spray Transfer or Short Circuit Transfer mode.
3. 98%Argon – 2%O₂ shielding gas is recommended in MIG process.
▶︎ Classification:
AWS A5.9 ER310
EN EN12072 G 25 20
JIS Z3321 Y310
▶︎ Typical chemical composition of weld metal (wt%)
| C | Cr | Ni | Mn | Mo |
| 0.02 | 21.3 | 10.86 | 1.89 | 0.2 |
▶︎ Typical mechanical properties of weld metal
| TS N/mm² | EL % |
| 580 | 38 |
▶︎ Sizes and Weight per pack.
| Wire size (mm) | 1.6 | 2.0 | 2.4 | 3.2 |
| Weight per box (kg) | 5 | 5 | 5 | 5 |
