AWS A5.9 : ER309L
EN 14343 B : SS309L
JIS Z 3321 : Y309L

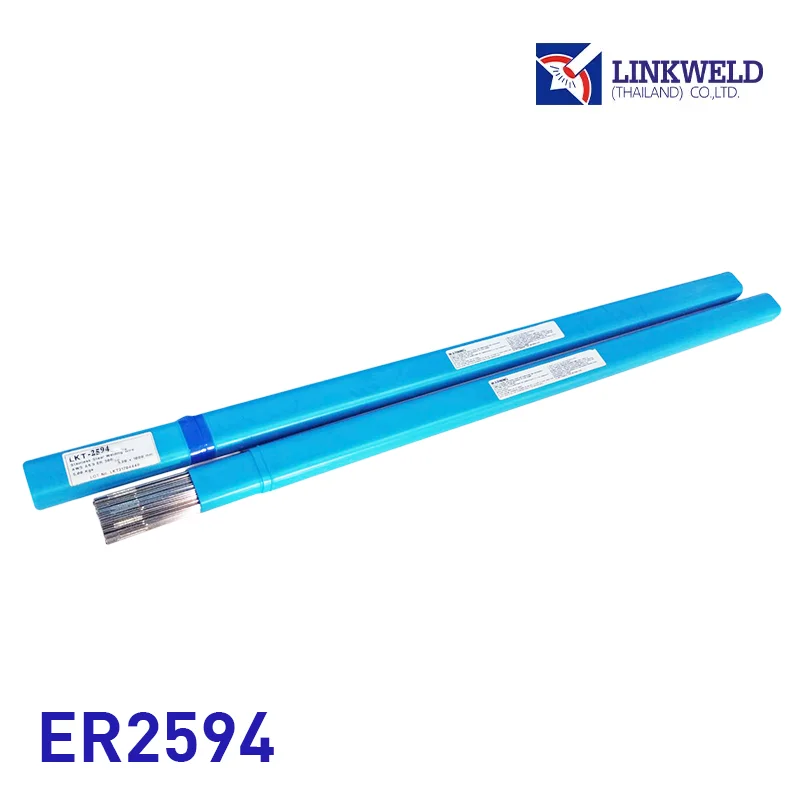

▶︎ Characteristics: stainless steel TIG rod
It designed for 3Dprinting of bigger structures enabling three dimensional, faster cooling conditions. Provides a ferritic-austenitic weld metal. Superduplex grades are offering high tensile strength and toughness as well as an excellent resistance to stress corrosion cracking and localized corrosion in chloride containing environments.
▶︎ Applications:
It is suitable for welding of duplex or super duplex stainless steel
▶︎ Notes on Usage:
1. For TIG process, use DC(-) current .
2. For MIG process, use DC(+) current.
3. 98%Argon – 2%O₂ shielding gas is recommended in MIG process.
▶︎ Classification:
AWS A5.9 ER2209
ISO 14343-A G 25 9 4 NL
▶︎ Typical chemical composition of weld metal (wt%)
| C | Mn | Si | Cr | Ni | Mo | N | Cu |
| 0.01 | 0.6 | 0.46 | 24.9 | 9.2 | 3.9 | 0.28 | 0.13 |
▶︎ Typical mechanical properties of weld metal
| TS N/mm² | EL % |
| 830 | 28 |
▶︎ Sizes and Weight per pack.
| Wire size (mm) | 1.6 | 2.0 | 2.4 | 3.2 |
| Weight per box (kg) | 5 | 5 | 5 | 5 |
