AWS A5.4 : E310
▶︎ Characteristics:
LKE-NiCrFe-1 is a low hydrogen type covered electrode. The weld metal provides excellent machining property, good heat resistance, good corrosion resistance, good toughness especially at low temperature.
▶︎ Applications:
It is suitable for the welding in all position of INCONEL ,INCONEL to stainless steel ,INCONEL to low alloy steel or stainless steel to low alloy steel.
▶︎ Notes on Usage:
1. Use small amperage as possible and keep the arc as short as possible.
2. Dry the electrode at 350-400°C for 30-60 minutes.
▶︎ Classification:
AWS A5.11 ENiCrFe-1
JIS Z3224 DNiCrFe-1J

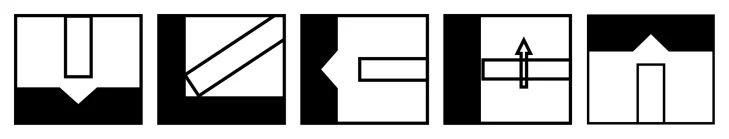

▶︎ Welding position:
▶︎ Typical chemical composition of weld metal (wt%)
| C | Mn | Si | P | S | Cr | Ni | Nb | Fe | Co |
| 0.06 | 3.2 | 0.24 | 0.006 | 0.007 | 14.5 | 71.1 | 2.2 | 9.23 | 0.11 |
▶︎ Typical mechanical properties of weld metal
| TS N/mm² | EL % | IV -196°C J |
| 620 | 42 | 89 |
▶︎ Sizes and recommended current range (AC or DC+)
| Diameter (mm) | 2.6 | 3.2 | 4.0 | 4.8 | |
| Length (mm) | 300 | 350 | 350 | 350 | |
| Amps | F | 60-90 | 70-115 | 95-145 | 140-180 |
| V&OH | 55-80 | 65-110 | 85-135 | – | |
| Weight per pack(kg) | 5 | 5 | 5 | 5 | |
| Weight per carton (kg) | 20 | 20 | 20 | 20 | |
