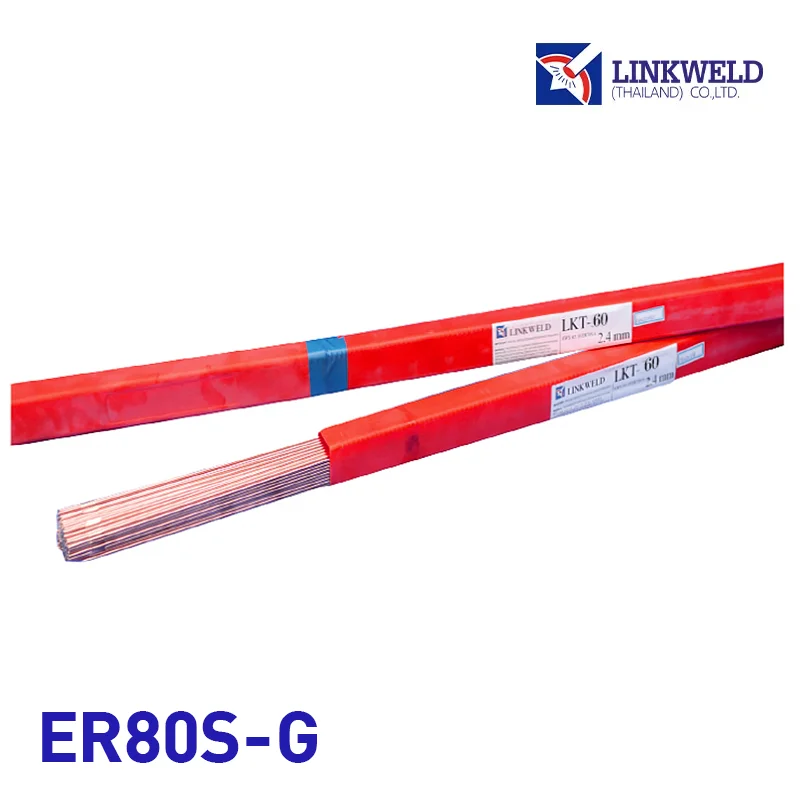

AWS A5.28 : ER80S-G
Characteristics:
It is designed for welding of high tensile 590N/mm2 steel. Commonly used is flat or horizontal fillet welding. It is suitable for root pass welding of pipes and applied in welding Mn-Mo, Mn-Mo-Ni alloy high tensile steel.
Applications:
It is suitable for welding of high strength steel used in steel construction, pressure vessels, vehicles and bridges
Notes on Usage:Applications:
- Electrode Stick Out must be kept between 15-25 mm.
- Use 100% Argon as shielding gas and the flow rate must be controlled that recommended 7-12 Lit/min when arc current is 100-200 Amp and goes up to 12-15 Lit/min when arc current rises to 200-300 Amp.
- Proper welding parameter shall be adopted for better welding performance. problem.
Classification:
| AWS A5.28 : | ER80S-G |
| ASME SFA-5.28 : | ER80S-G |
Typical chemical composition of weld metal (wt%)
| C | Mn | Si | P | S | Mo |
| 0.08 | 1.72 | 0.67 | 0.015 | 0.011 | 0.33 |
Typical mechanical properties of weld metal
| YP N/mm2 | TS N/mm2 | EL % |
| 540 | 660 | 29 |
Sizes, Length and Weight per pack.
| Diameter (mm) | 2.4 |
| Length (mm) | 915 |
| Weight per pack (kg) | 5 |
