AWS A5.1 E6013
EN E 35 0 R 1 2
JIS Z3211 E4313
EN E 35 0 R 1 2
JIS Z3211 E4313
▶︎ Characteristics:
LKE-6013 is designed for high efficiency welding. Because of its thin flux coating the welding can be done with good slag removability, shallow penetration, less spatters and beautiful bead.
▶︎ Applications:
It is suitable for welding of vehicles, steel sheets and other light structures.
▶︎ Notes on Usage:
1. Don’t exceed the range of proper current and weld with AC or DC.
2. Dry the electrodes at 80-100ºC for 30~60 minutes.
▶︎ Classification:
AWS A5.1 E6013
EN E 35 0 R 1 2
JIS Z3211 E4313
▶︎ Welding position:
▶︎ Typical chemical composition of weld metal (wt%)
| C | Mn | Si | P | S |
| 0.08 | 0.45 | 0.18 | 0.012 | 0.009 |
▶︎ Typical mechanical properties of weld metal
| YP N/mm² | TS N/mm² | EL % | IV - 0 ºC J |
| 415 | 470 | 28 | 84 |
▶︎ Sizes and recommended current range (AC or DC+)
| Diameter (mm) | 2.6 | 3.2 | 4.0 | 5.0 | |
| Length (mm) | 300 | 350 | 400 | 400 | |
| Amps | F | 60-90 | 100-120 | 110-160 | 160-220 |
| V&OH | 50-80 | 80-110 | 100-150 | 140-200 | |

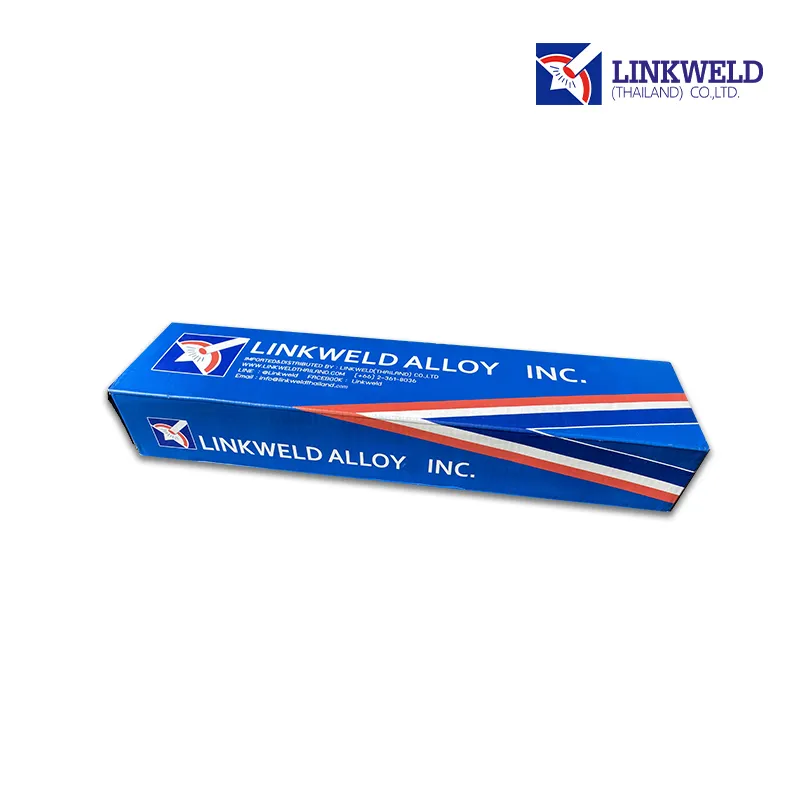

| Weight per pack (kg) | 4/5 | 5 | 5 | 5 | |
| Weight per carton (kg) | 20 | 20 | 20 | 20 | |
