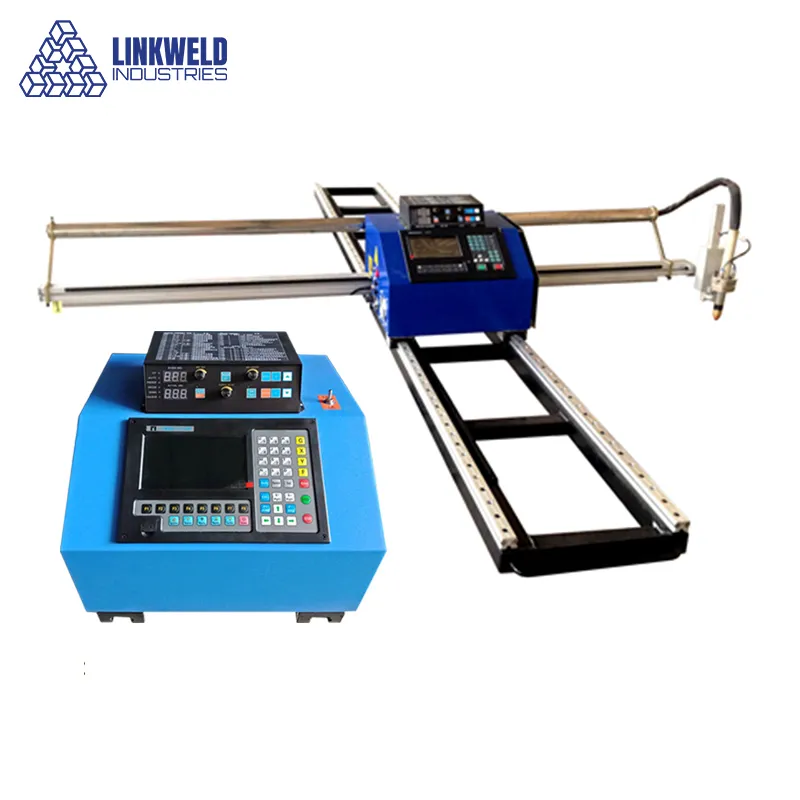

(CNC Portable Flame & Plasma Cutting)

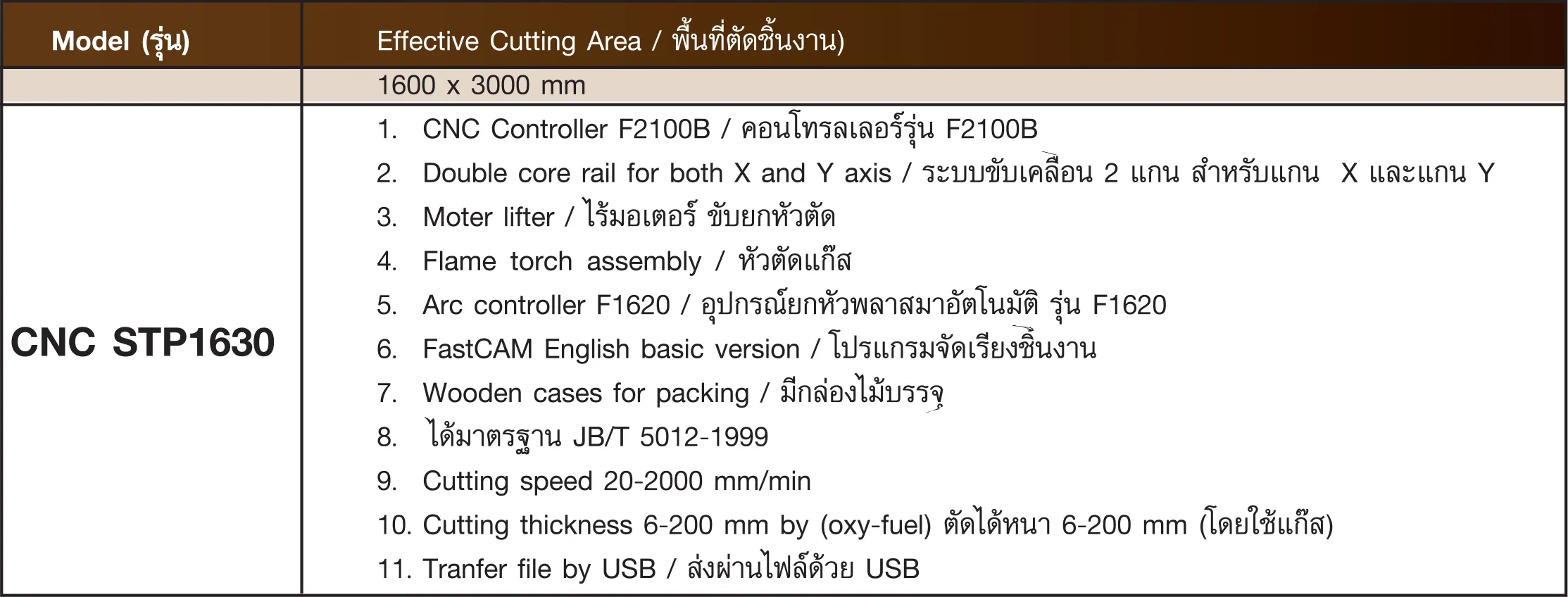

Main Parameter
1. Cutting Precision: according to standard of JB/T 5012-1999
2. Installation: easy assemble by yourself
3. Effective Cutting Width: 1600mm Effective Cutting Length:3000mm
4. Cutting Speed: 50-1000mm/min
5. Free Speed: 4000mm/min Biggest Cutting Speed: 3000mm/min
6. Torch: one flame torch & Plasma holder
7. Cutting Thickness: 6-120mm(cut with flame)
8. CNC Control System: F2100B
9. Program Software: FastCAM software of Austrilia
10. File Transfer by: USB Interface
11. Cutting Gas: O2/C2H2 or C3H8
12. Package: 2 wooden case(Guide track in accessory case, and other parts in the main unit case)
13. For each machine, it’s equipped with main unit(also has plasma interface I/O), guide track, software, cutting assy, power socket, 3pcs cutting nozzles(*) and other necessary parts)
14. This machine also has plasma interface, if you want to cut by plasma, you can add the plasma system to the machine directly.
1. Cutting Precision: according to standard of JB/T 5012-1999
2. Installation: easy assemble by yourself
3. Effective Cutting Width: 1600mm Effective Cutting Length:3000mm
4. Cutting Speed: 50-1000mm/min
5. Free Speed: 4000mm/min Biggest Cutting Speed: 3000mm/min
6. Torch: one flame torch & Plasma holder
7. Cutting Thickness: 6-120mm(cut with flame)
8. CNC Control System: F2100B
9. Program Software: FastCAM software of Austrilia
10. File Transfer by: USB Interface
11. Cutting Gas: O2/C2H2 or C3H8
12. Package: 2 wooden case(Guide track in accessory case, and other parts in the main unit case)
13. For each machine, it’s equipped with main unit(also has plasma interface I/O), guide track, software, cutting assy, power socket, 3pcs cutting nozzles(*) and other necessary parts)
14. This machine also has plasma interface, if you want to cut by plasma, you can add the plasma system to the machine directly.
SPECIFICATION:
