AirLINK TIG300 Welding Machine
AirLINK TIG300 เครื่องเชื่อม TIG และ MMA พร้อมรีโมทไร้สาย ใช้งานง่าย ปลอดภัย ควบคุมได้ไกลถึง 150 เมตร
AirLINK TIG300 Welding Machine

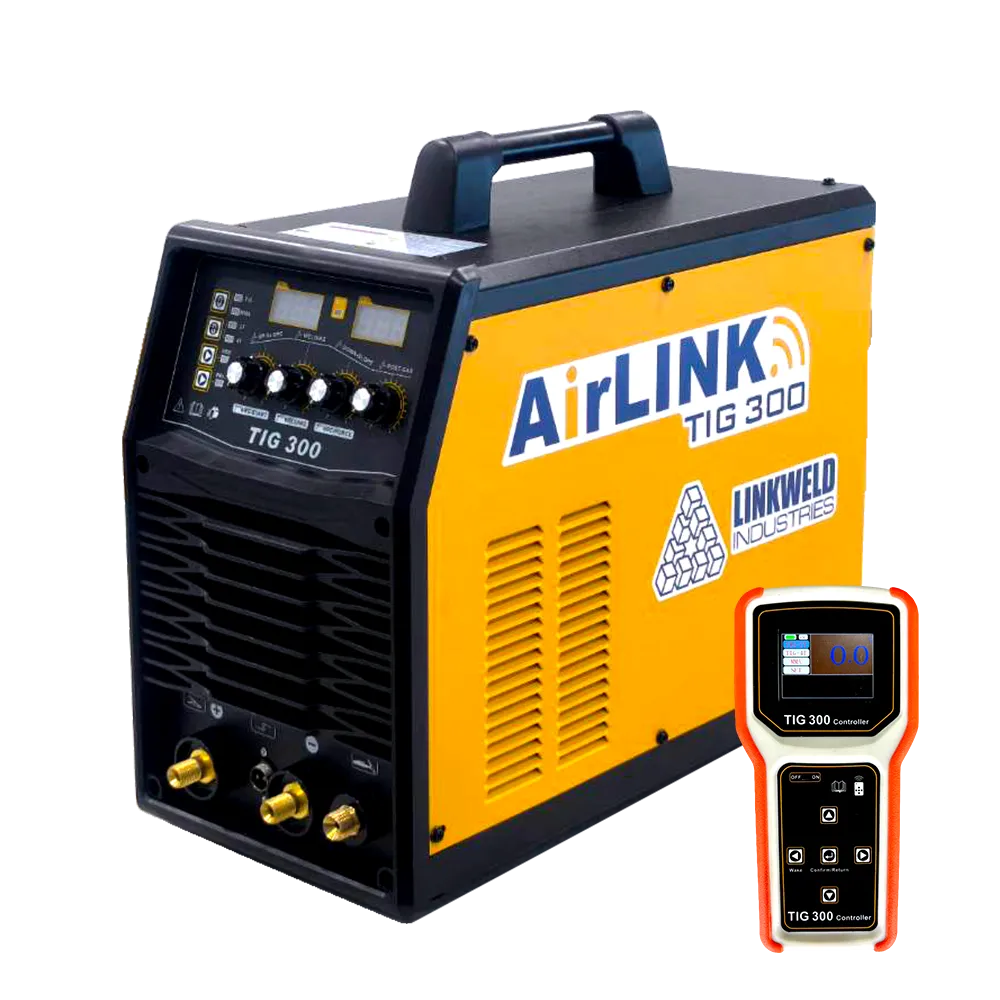

The AirLINK TIG300 Welding Machine comes with a Wireless Remote Control, allowing operators to manage welding operations conveniently even from a distance. This model is designed to support both MMA (Manual Metal Arc) and TIG (Tungsten Inert Gas) welding, ensuring ease of use, safety, and stable performance.
Key Features:
- Supports both MMA and TIG welding

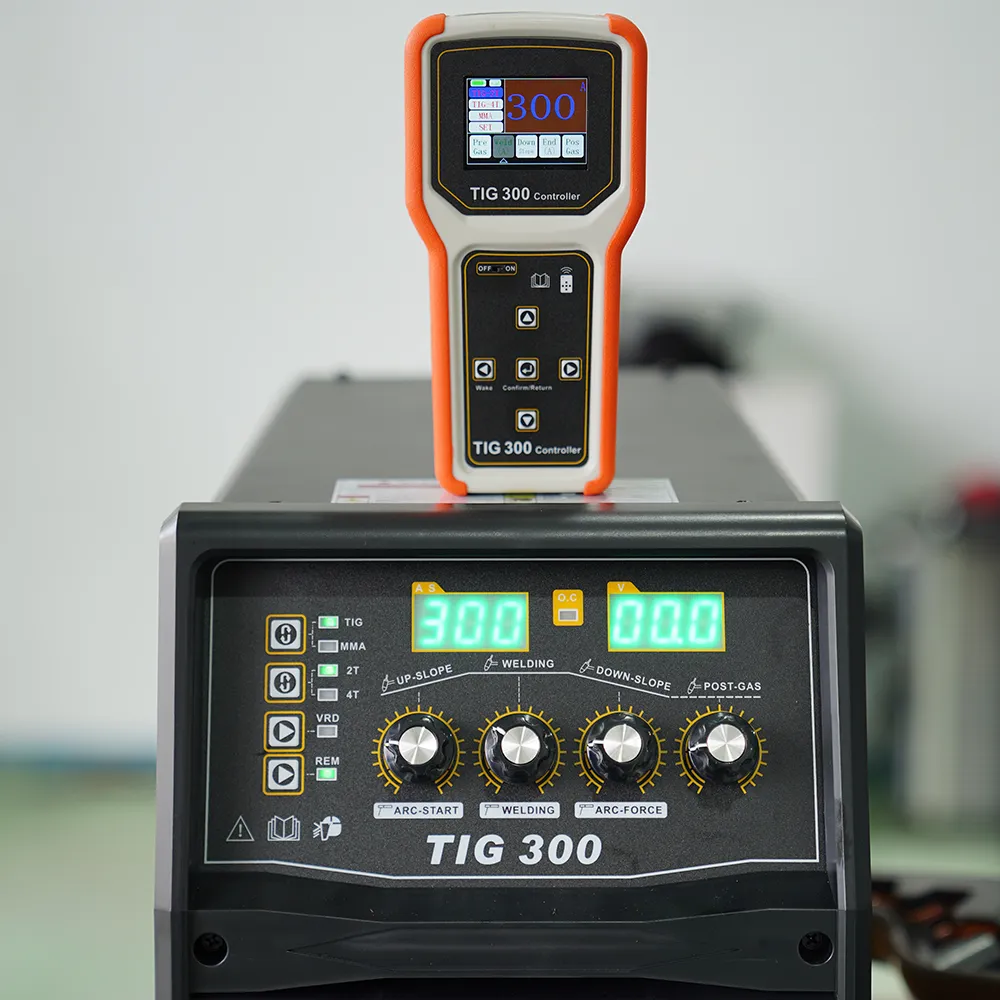

- Wireless remote control (up to 150 meters range)
- Built-in anti-electric shock and anti-stick functions
- Wide adjustable current range with advanced functions: Pre-gas, Post-gas, Up slope, and Down slope
Technical Specifications – AirLINK TIG300
| Parameters | MMA | TIG | |
| Input Voltage (V) | AC220V ±15% 1 Phase | ||
| Input voltage Frequency (Hz) | 50/60 | ||
| Rated input current (A) | 50.5 | 38.2 | |
| Rated input power capacity (KVA) | 11.1 | 8.4 | |
| No-load voltage (V) | 62 | ||
| Rated output voltage (V) | 31.2 | 22 | |
| Output current range (A) | 30–280 | 10–300 | |
| MMA Arc Force (A) | 0–200 | - | |
| MMA Arc Start current (A) | 0–150 | - | |
| MMA Arc start current time (s) | 0.1–1.5 | - | |
| MMA Anti-electric | ON/OFF | - | |
| MMA Anti-stick | ON/OFF | - | |
| TIG Operating Choice | - | 2T – Down slope 4T – Up slope & down slope |
|
| TIG Up-Slope (s) | - | 0–9.99 | |
| TIG Down-Slope (s) | - | 0–9.99 | |
| TIG Pre-gas (s) | - | 0.01–0.5 (Default 0.05s) | |
| TIG Post-gas (s) | - | 0.5–9.99 | |
| TIG Arc start current (A) | - | 10–300 (Default 20A) | |
| TIG Arc end current (A) | - | 10–300 (Default 20A) | |
| Duty Cycle | 25 °C | 100%@280A | 100%@300A |
| 40 °C | 40%@280A | 50%@300A | |
| 100% Duty Cycle | 40 °C | 100%@250A | 100%@260A |
| Weight (kg) | 15 | ||
| Dimension (mm) | 450 × 220 × 411 | ||
| Wireless Transmission Distance | 150M (Accessibility) | ||
