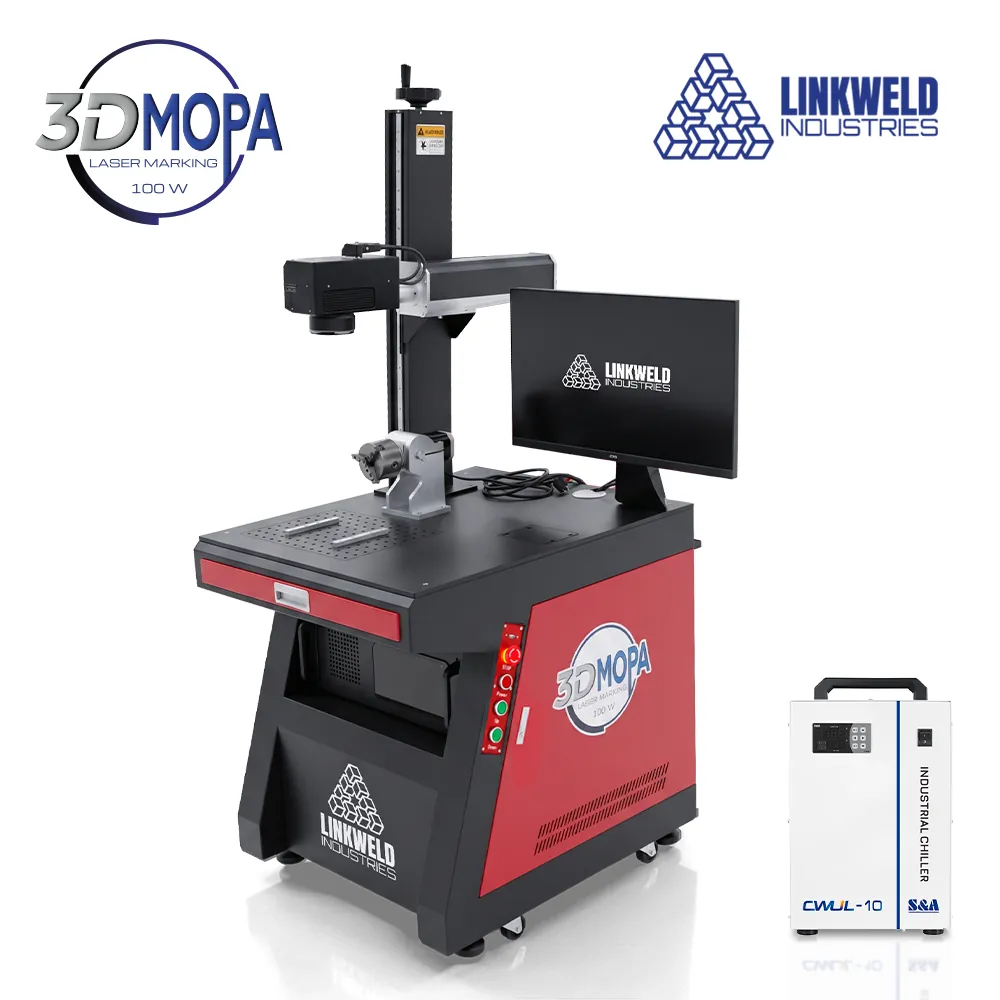

3D Laser Marking Machine – MOPA 100W
3D Laser Marking Machine – MOPA 100W

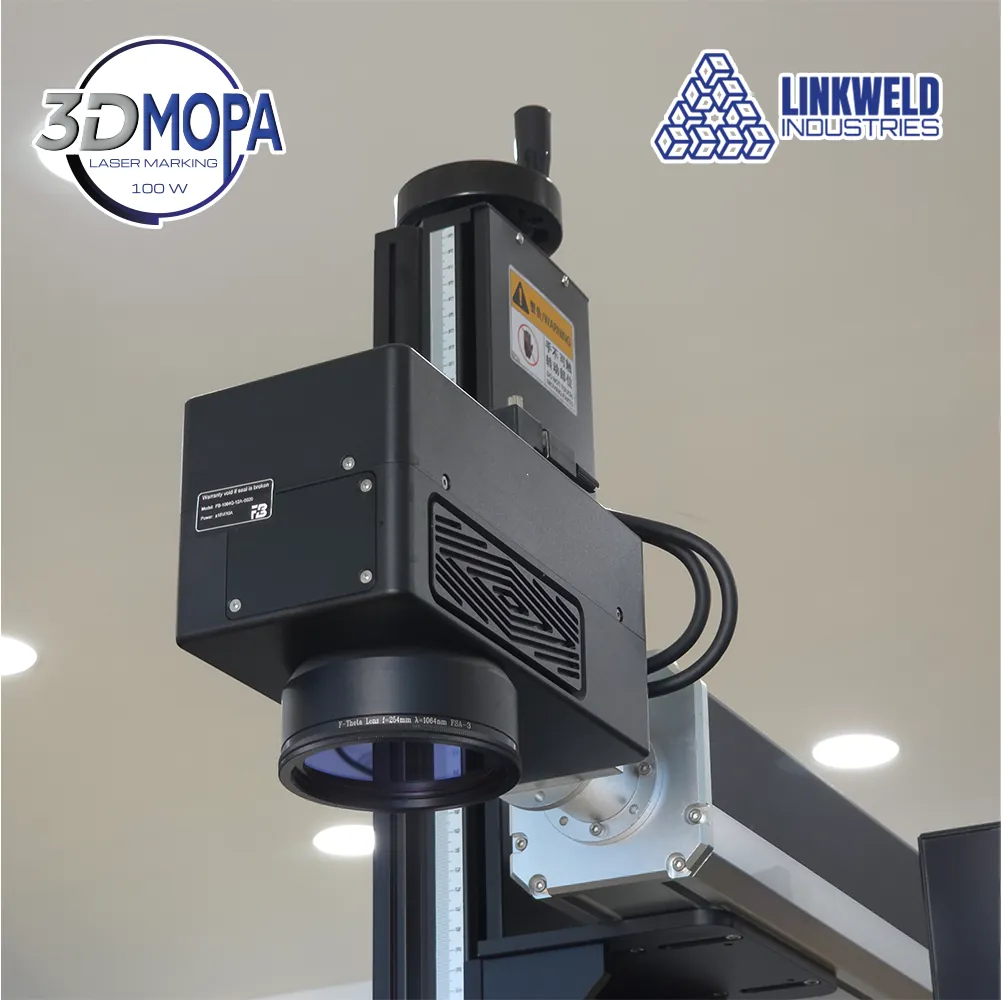

The 3D MOPA Laser Marker is designed for high-precision marking on multi-level and curved surfaces. Equipped with a JPT MOPA laser source, it provides excellent beam quality and adjustable pulse parameters, allowing for deep engraving, fine textures, high-contrast marking, and detailed artwork without damaging the material surface.
It is ideal for mold fabrication, machinery parts, automotive components, decorative engraving, jewelry, and any industry requiring accurate and detailed 3D marking. The 3D capability allows the machine to handle uneven surfaces and complex shapes efficiently.
Key Features
- High-clarity marking with premium detail
- Supports complex patterns and multi-level 3D engraving
- Deep engraving with clean edges and no burning
- Excellent fine-texture marking with high resolution
- Compatible with various industrial file formats
Technical Parameters
| Item | Specification |
|---|---|
| Laser Power | 100W |
| Laser Source | JPT MOPA |
| Marking Area | 175 × 175 mm |
| Max Marking Speed | 2500 mm/s |

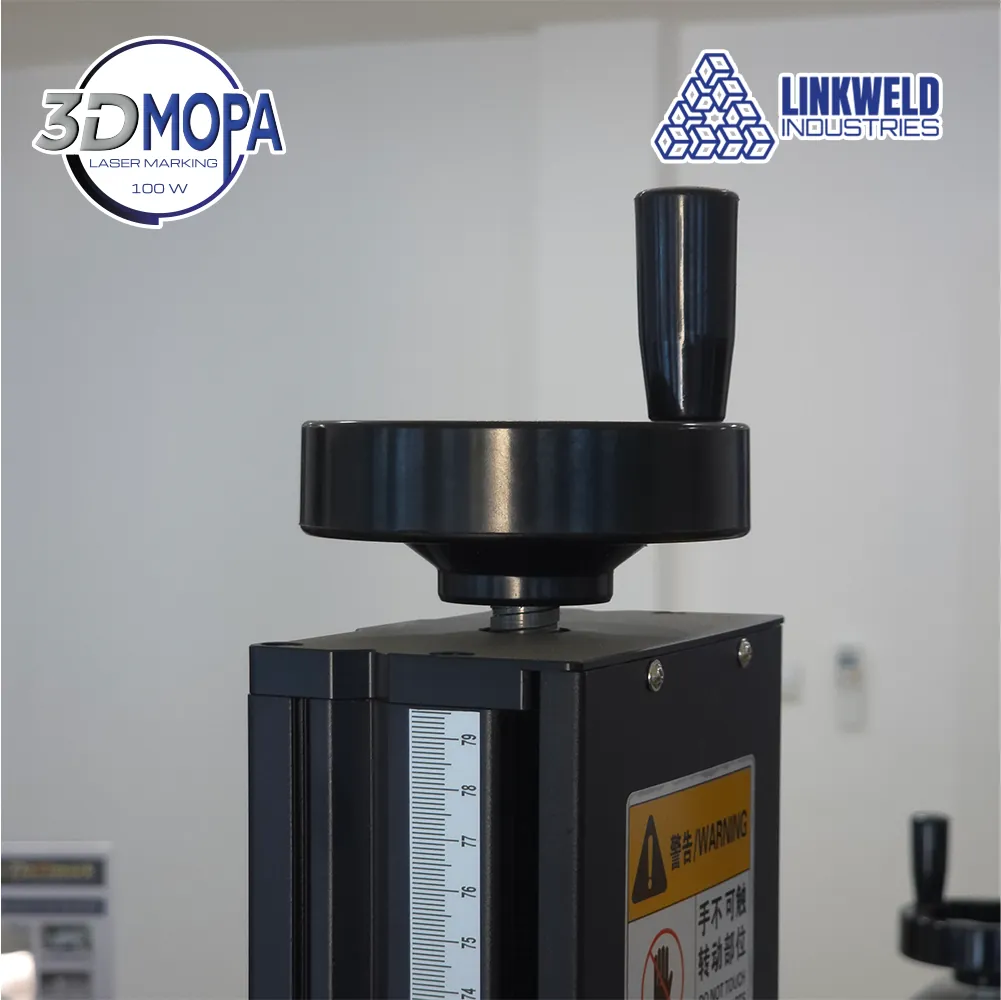

| Z Axis Height | 600 mm |
| Rotary Specification | 25–80 mm |
| Cooling System | Water Chiller |
| Control Software | 3D MARKING MATE (MM3D) |
| Computer Specification | Intel Core i5, 256GB SSD, 16GB RAM, discrete graphics card |
| Monitor | 24 inches |
| File Formats Supported | stl, stp, step, igs, iges, txt, dwg, dxf, pllt, cnc, obj, gbr, dst, xml, ai, nc, svg, lpf, psd, png, jpg, tiff |
| Working Temperature | 5–35°C |
| Power Input | 220V, 50Hz |
| Dimension | 785 × 650 × 1800 mm |
| Weight | 150 kg |
